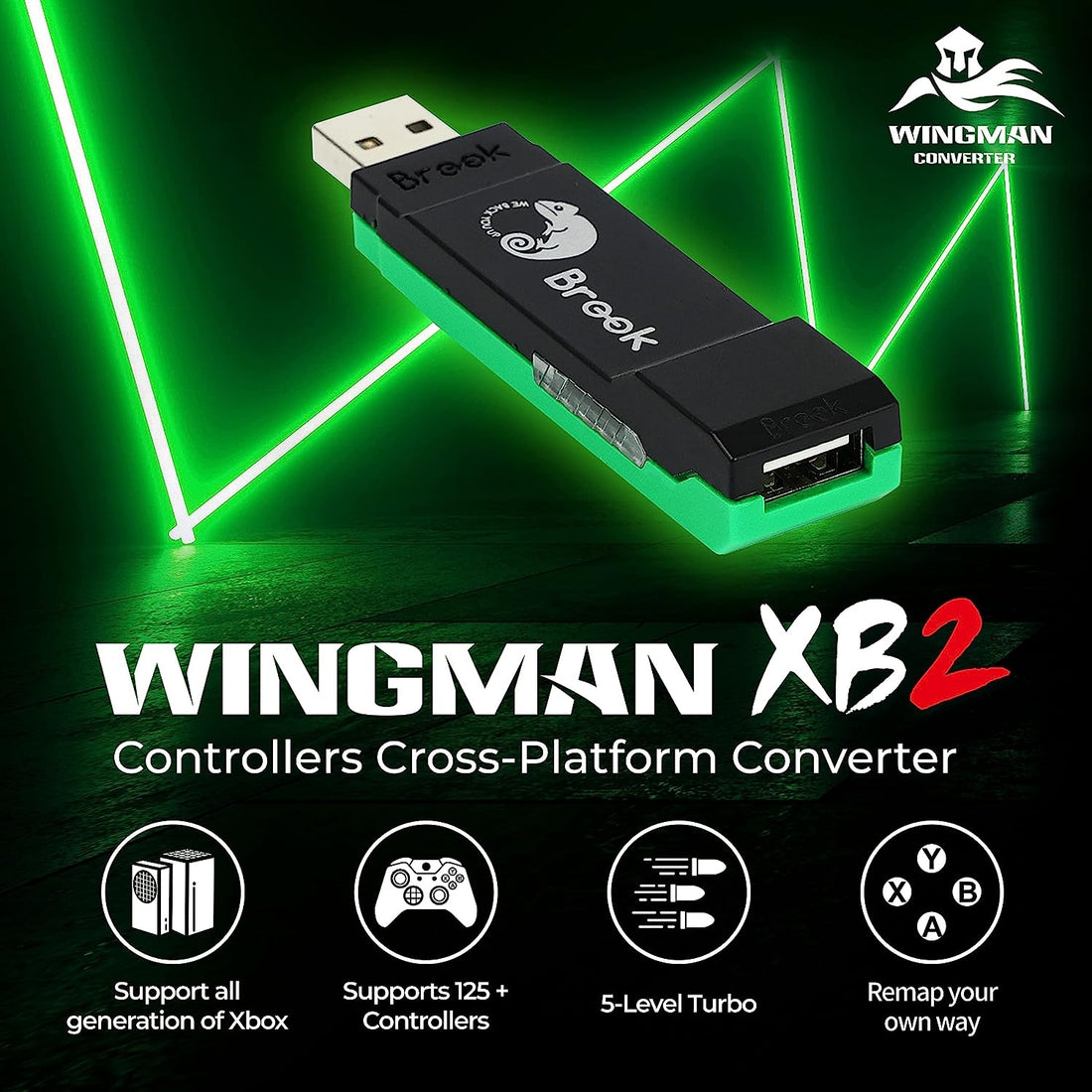

Level Up Your Xbox: Complete Setup Guide for the Brook Wingman XB 2 Adapter

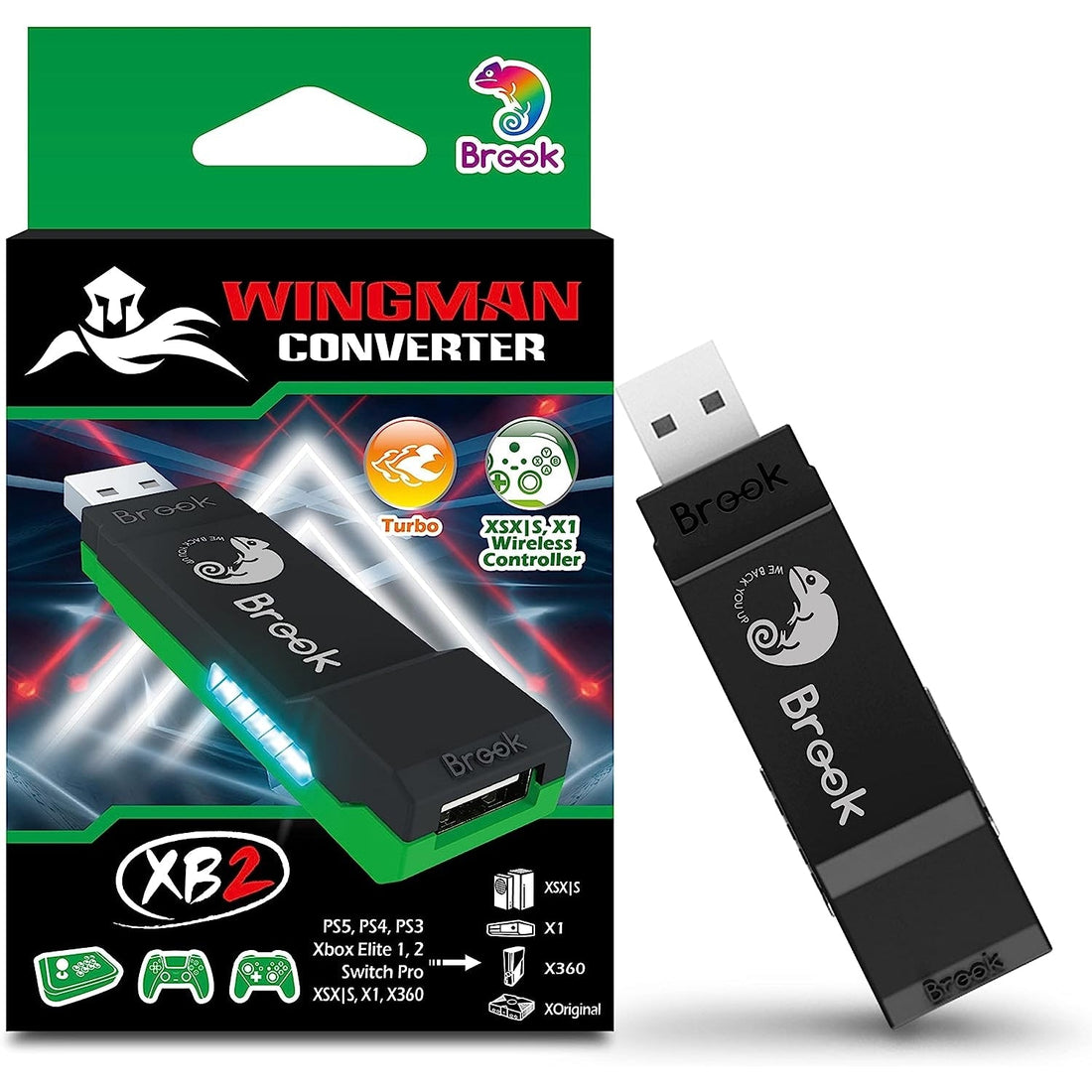

Ready to use your favorite custom fightstick, PlayStation, or Nintendo controller on your Xbox console? The Brook Wingman XB 2 is the key to cross-console compatibility, offering lag-free performance and powerful customization features.

This guide will show you how to connect the adapter and master the advanced Turbo and Remap functions.

Part 1: Initial Console Connection

The first step is establishing the connection between the adapter and your Xbox console (Xbox Series X/S or Xbox One).

1. Connect to Console: Plug the Wingman XB 2 directly into a USB port on your Xbox console.
2. Verify Connection: The Blue indicator light on the Wingman XB 2 will start slowly blinking. This confirms that the Wingman XB 2 and the console are connected and ready for a controller.

Part 2: Connecting Your Controllers

The Wingman XB 2 supports over 125 different controller models. Here’s the setup process for wired and wireless controllers:

1. Wired Joysticks & Controllers

Simply plug your wired USB controller or fightstick into the USB port on the Wingman XB 2. The Blue indicator will stop blinking and turn permanently solid to show a successful connection.

2. Wireless PS3, PS4, or PS5 Controllers

These controllers require a one-time wired pairing:

1. Connect the wireless controller and the Wingman XB 2 using a USB cable.
2. Once the Blue indicator turns permanently solid, remove the USB cable. The controller is now wirelessly paired.

3. Xbox Elite 2, Xbox One, or Nintendo Switch Controllers

These controllers use a quick wireless pairing function:

1. Press and hold both the LED button (on the Wingman XB 2) and the Pair button (on the controller) simultaneously for one second.
2. The adapter will connect, indicated by the steady Blue indicator light.

4. Xbox 360 Controllers

You will need the official Xbox 360 Wireless Receiver:

1. Plug the 360 receiver into the USB port on the Wingman XB 2.
2. The Blue indicator light will turn permanently solid, confirming the connection.

Part 3: Advanced Functions (Turbo & Remap)

The Wingman XB 2 allows you to customize your inputs on the fly. These steps use the Xbox Guide, View, and Menu buttons, as demonstrated with an Xbox One controller. The Red indicator signals that you are in a setup mode.

A. Turbo Setup (Rapid Fire)

The Red indicator light signals that you are in Turbo Setup Mode.

Action	Button Combination	Result
Enter Setup Mode	View + Xbox Guide buttons	Red indicator turns on.
Set Turbo Button	Choose button (e.g., X), then press View	(X button is now Turbo.)
Save & Exit	Menu button	Saves settings.
Exit Setup Mode	Xbox Guide button	Red indicator turns off.

B. Adjusting Turbo Frequency (Shots Per Second)

There are five frequencies available: 5, 10 (default), 15, 20, and 25 shots per second.

Action	Button Combination	Result
Enter Setup Mode	View + Xbox Guide buttons	Red indicator turns on.
Increase Frequency	View + D-pad Up	Indicator flashes faster.
Decrease Frequency	View + D-pad Down	Indicator flashes slower.
Save & Exit	Menu button	Saves settings.
Exit Setup Mode	Xbox Guide button	Red indicator turns off.

C. Canceling Turbo Settings

1. Press View + Xbox Guide to enter Turbo Setup Mode (Red indicator).
2. Press View + Menu buttons to cancel all Turbo Mode settings.
3. Press the Xbox Guide button to exit.

D. Remap Setup (Changing Button Layout)

The Red indicator light also signals that you are in Remap Setup Mode.

Action	Button Combination	Result
Enter Setup Mode	Menu + Xbox Guide buttons	Red indicator turns on.
Remap Single Button	[Button to remap] once, then View + [Desired new function]	(e.g., Press X, then View + B to make X act as B.)
Remap Combined Button	[Button to remap] once, then View + [Button 1] + [Button 2]	(e.g., Press A, then View + X + B to make A press both X and B.)
Save & Exit	Menu button	Saves settings.
Exit Setup Mode	Xbox Guide button	Red indicator turns off.

E. Canceling Remap Settings

1. Press Menu + Xbox Guide to enter Remap Setup Mode (Red indicator).
2. Press View + Menu buttons to cancel all Remap Mode settings.
3. Press the Xbox Guide button to exit.

The Brook Wingman XB 2 is the ultimate tool for cross-platform play. Enjoy your games with full compatibility and custom controls!
