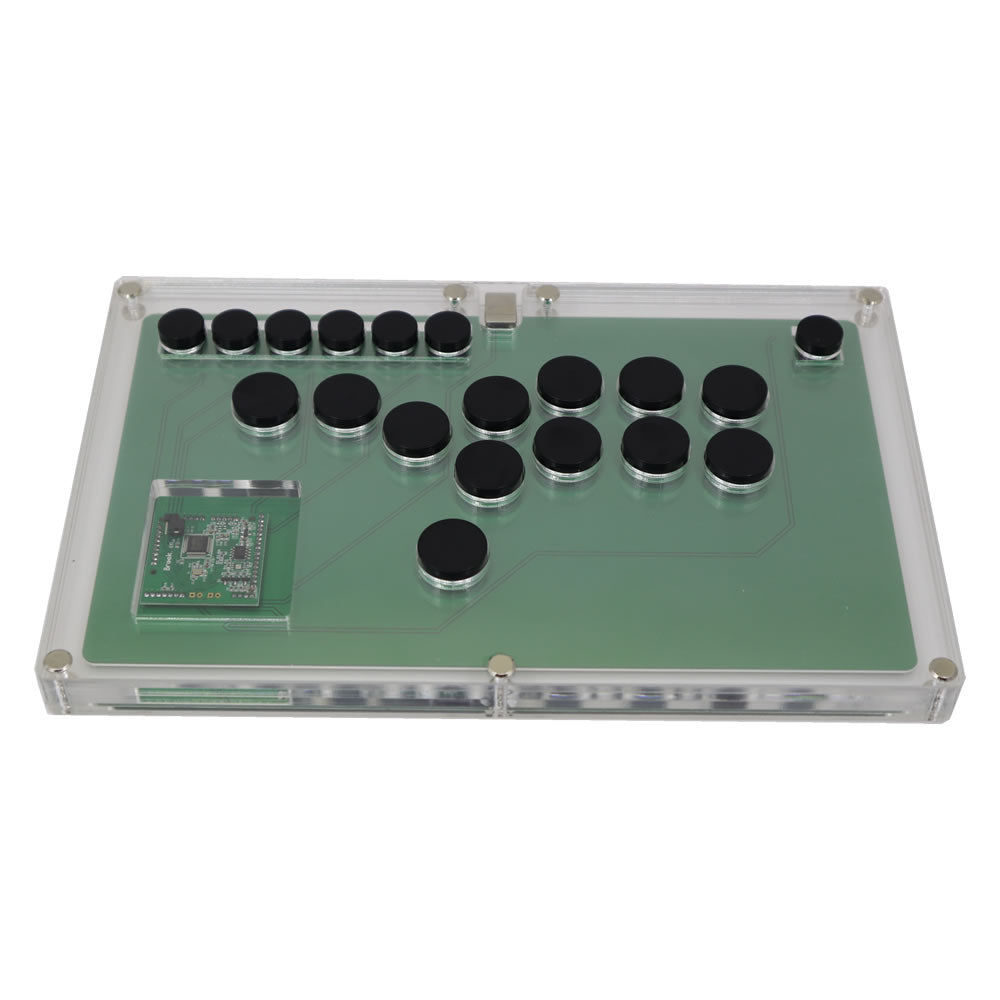

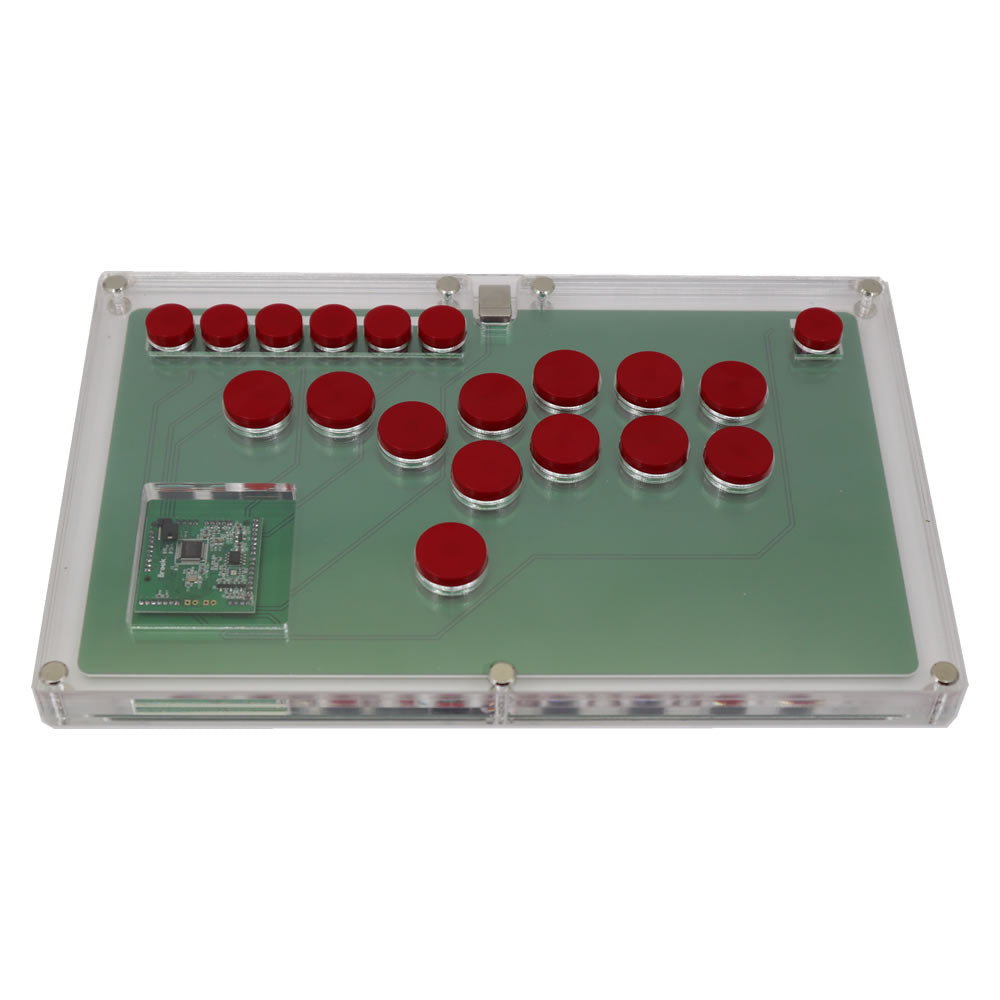

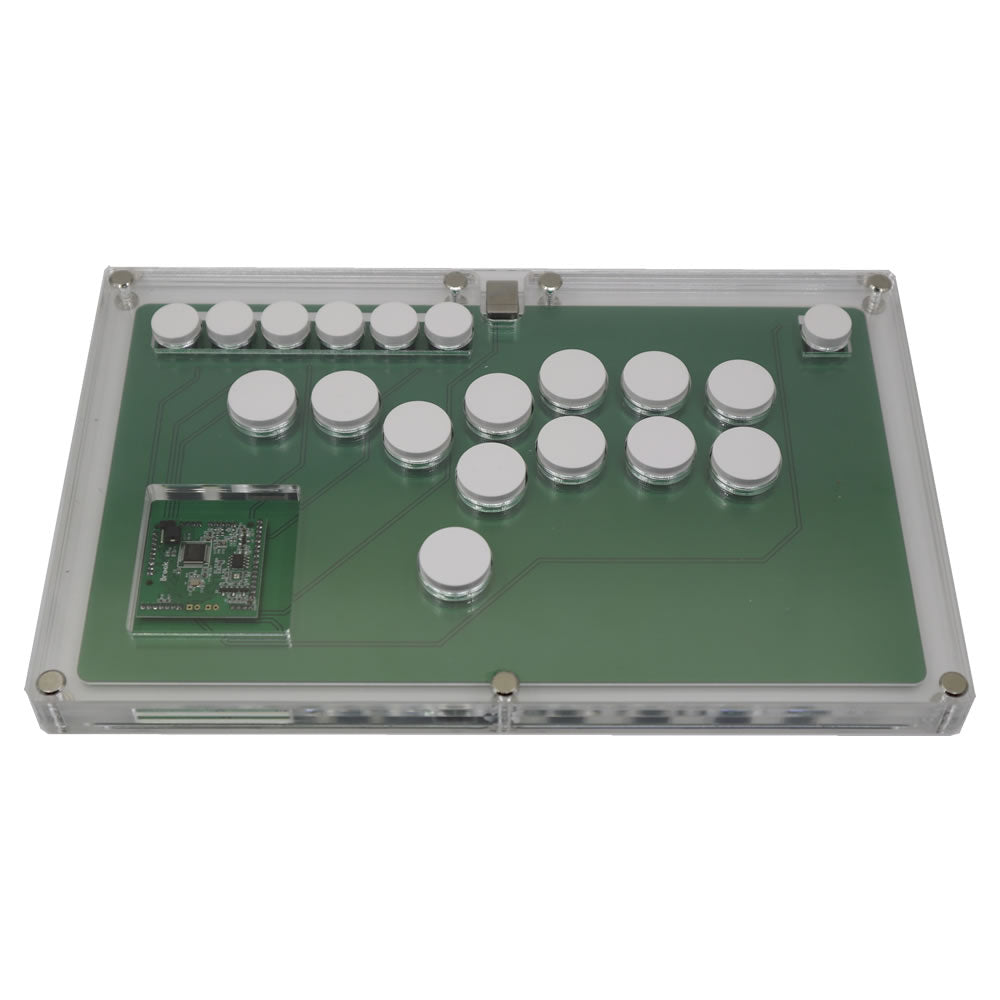

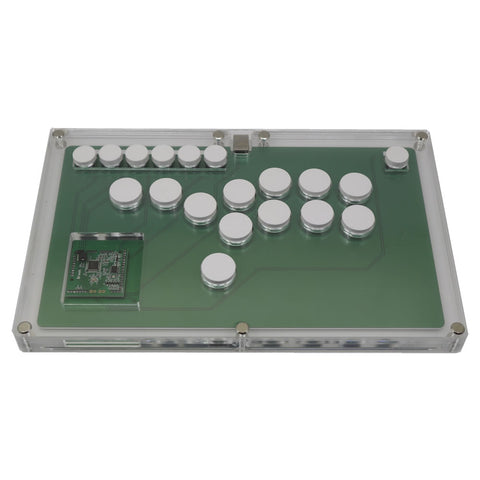

The FightBox B1-PS-DIY is using all-acrylic ultra-thin design, the thickness is less than 2cm, and the layered structure allows users to place their own artwork paper on the panel. It has 4x24mm buttons(Cherry MX Black key switches) on the left side of the controller, instead of the traditional analog joystick, with 8x24mm buttons(Cherry MX Black key switches) for the action buttons on the right side of the controller. Using hot-swappable technology, it is convenient for users to replace their favorite mechanical key switches. The FightBox B1-PS-DIY is compatible with PC/PS3/PS4 by using Brook Fighting Board，it also supports playing PS4 Games on PS5!
4 push buttons as directional keys
8 push buttons as action buttons
All of above buttons are hot-swappable Cherry MX Black key switches
Powered by Brook Fighting Board For PC/PS3/PS4
Direct connection to the PS4 console does not require a controller, completely replacing all functions of the controller

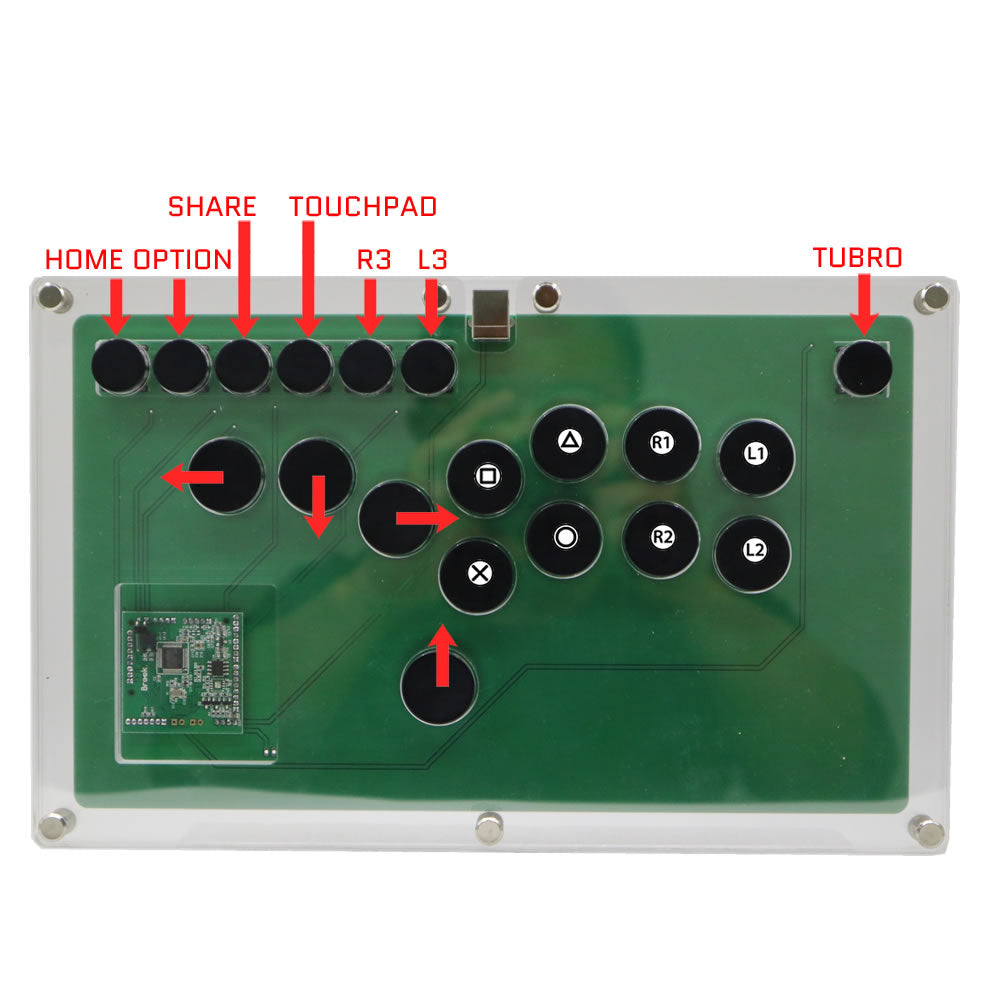

6 buttons on the top left of panel as Home, Options, Share, Touchpad, R3, L3 buttons
1 button on the top right of panel as TURBO
SOCD Supported, UP + DOWN = UP, LEFT + RIGHT = NEUTRAL directional cleaning, a tournament standard for all buttons Game Controller
Cable type: USB (Type B to Type A)
Cable length: about 3m
Panel Size: 30x18.8cm
Product Height: 1.9cm
Product Weight: 1.2kg
About DIY Panel:
DIY Panel require customers to have a certain amount of hands-on ability.
Customers can print color patterns on A3 paper and put it in the middle of the top two panels.
The default kit does not include the A3 paper,
A3 paper template file: https://drive.google.com/file/d/1YtErIjWGLn6Q96fo06YFenOIXVJ1ef7N/view?usp=sharing
PC Version support three SOCD modes:
Neutral SOCD mode (UP + DOWN = NEUTRAL, LEFT + RIGHT = NEUTRAL)
Upper priority SOCD mode (UP + DOWN = UP, LEFT + RIGHT = NEUTRAL)
Last win SOCD mode(UP + DOWN = DOWN, LEFT + RIGHT = RIGHT, DOWN + UP = UP, RIGHT + LEFT = LEFT)
You hold down the MODE and START keys, and then press the LEFT arrow key to switch to the last win SOCD mode.
You hold down the MODE and START keys, and then press the UP arrow key to switch to the upper priority SOCD mode.
You hold down the MODE and START keys, then press the DOWN arrow keys to switch to neutral SOCD mode.
Other Version(PS,PS5,XBOX,UV,UFB-UP5) need to go to the official website of Brook to update the latest firmware, support multiple SOCD modes, key combination switching.
For all version, Upper priority SOCD mode as default.
1 x FightBox B1-PS-DIY All Buttons Arcade Joystick Game Controller For For PS5/PS4/PS3/PC
We will ship from China ShenZhen warehouses.
