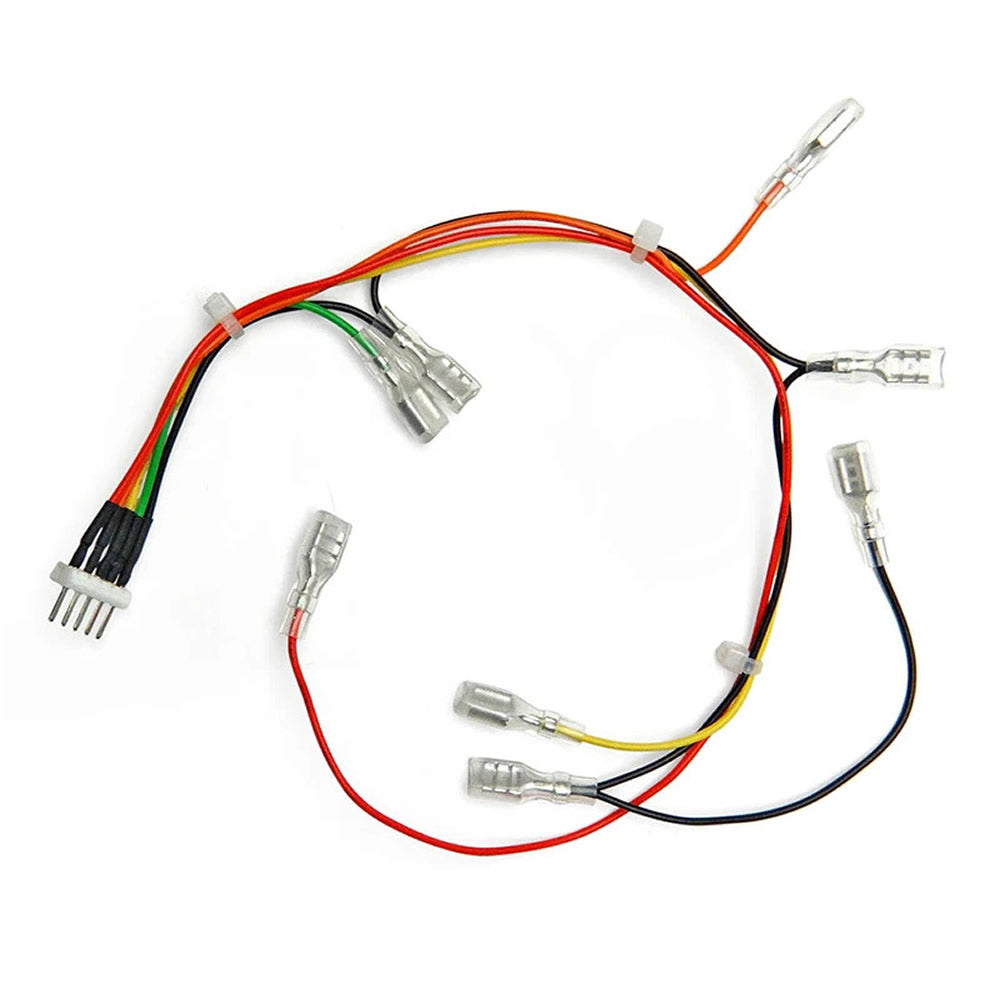

5-Pin to 4.8mm (.187") Microswitch Terminals 2-Pin 8-Pin Conversion Harness

  • Sale
  • Regular price $6.99
Shipping calculated at checkout.


Free shipping !


Shopify secure badge

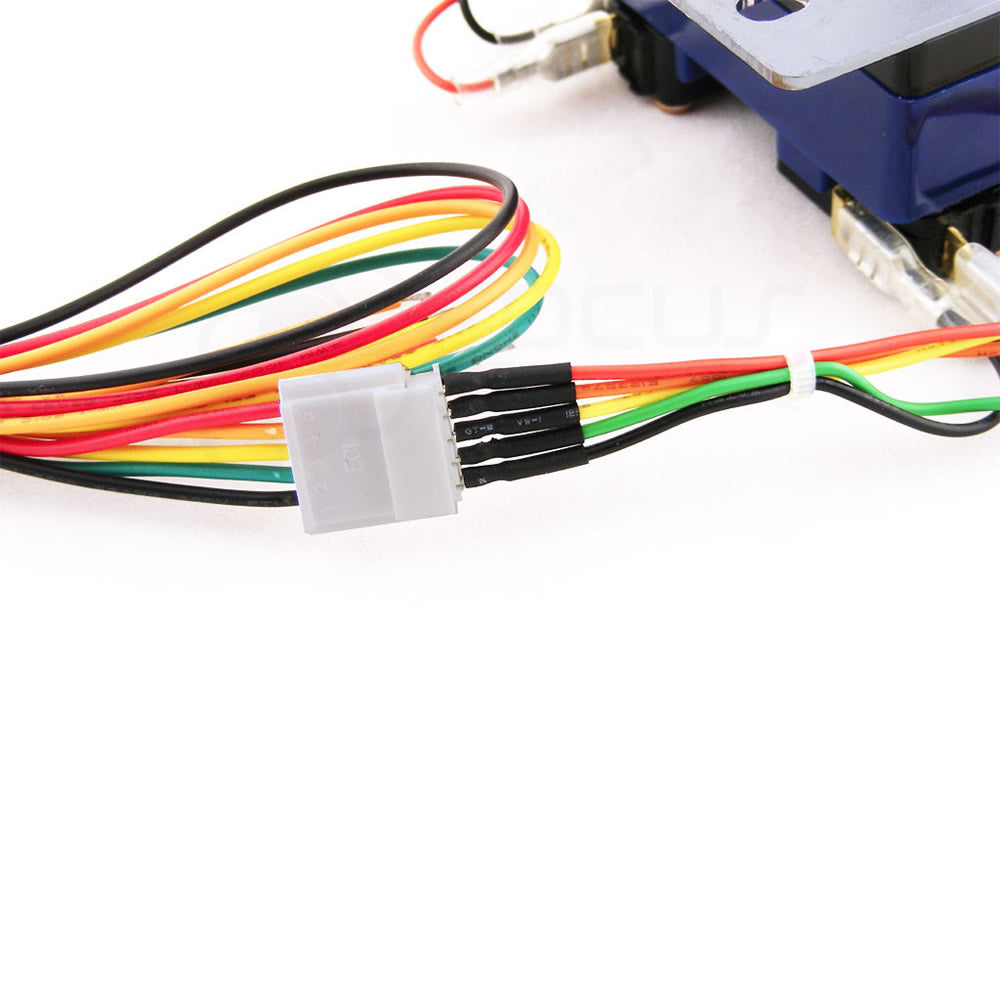

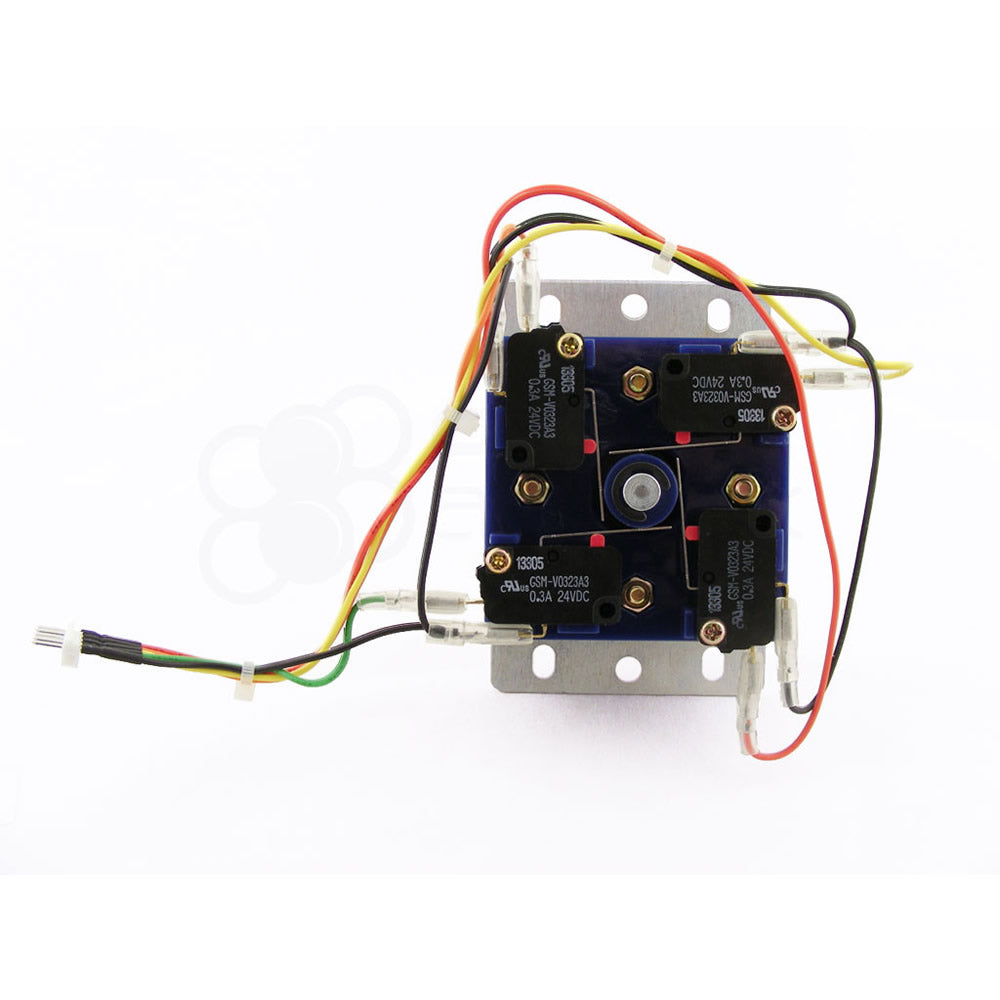

The 4.8mm (0.187 inch) Microswitch Terminal 8-Pin to 5-Pin Conversion Harness is the optimal choice for connecting levers with 0.187 inch microswitch terminals to the Sanwa JLF-H harness. Simply connect the harness to the 0.187" terminals on the lever microswitches, and the other end of the harness can slide into existing Sanwa JLF-H or JST-XH harnesses. For microswitch-based levers, each lever has 4 microswitches, each requiring separate ground and signal wire connections. This differs from the Sanwa JLF series levers, where the microswitches are soldered onto the PCB and connected via the JLF-H 5-pin harness. By using this 8-pin to 5-pin conversion harness, you can easily connect most levers with .187" microswitch terminals to Sanwa JLF-H or JST-XH cables.

Features:

Compatible with Sanwa JLF-H or JST-XH cables

Converts levers with standard .187" microswitch terminals to Sanwa JLF-H or JST-XH cables

Wire Colors:

Red = Up

Orange = Down

Green = Left

Yellow = Right

Black = Ground

Suitable for:

This conversion harness is suitable for any lever with 4.8mm (0.187 inch) microswitch terminals.

Package Includes:

1 x 5-Pin to 4.8mm (.187") Microswitch Terminals 2-Pin 8-Pin Conversion Harness

About Shipping:

For US buyers, we will ship from US warehouses.

For international buyers, we will ship from China ShenZhen warehouses.
