Crown Samducksa Knee Lever - Neo Edition Joystick Korean Professional

Crown/Samducksa KNEE Lever Neo Edition – Korean Arcade Joystick

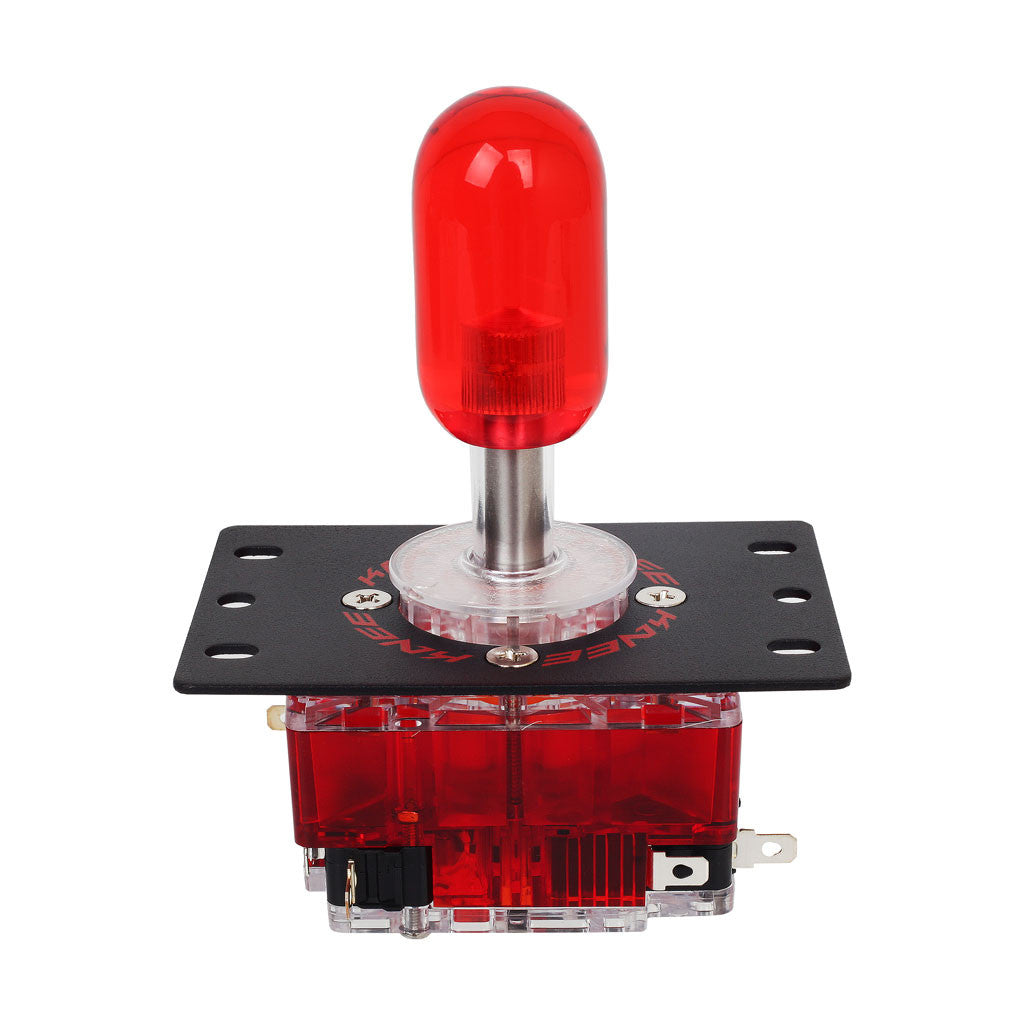

Upgrade your fight stick with the Crown/Samducksa KNEE Lever Neo Edition, a premium Korean-style arcade joystick designed around the preferences of professional Tekken player Knee.

Featuring a distinctive transparent red acrylic handle, specialized rubber grommet tension, and precision Gersung microswitches, the KNEE Lever Neo delivers the responsive directional control and return-to-neutral feel associated with Korean arcade levers.

Key Features

• Korean-style lever response: Uses a specialized 30+ rubber tension grommet instead of a traditional metal tension spring.
• Premium red acrylic handle: Distinctive transparent red capsule-style grip.

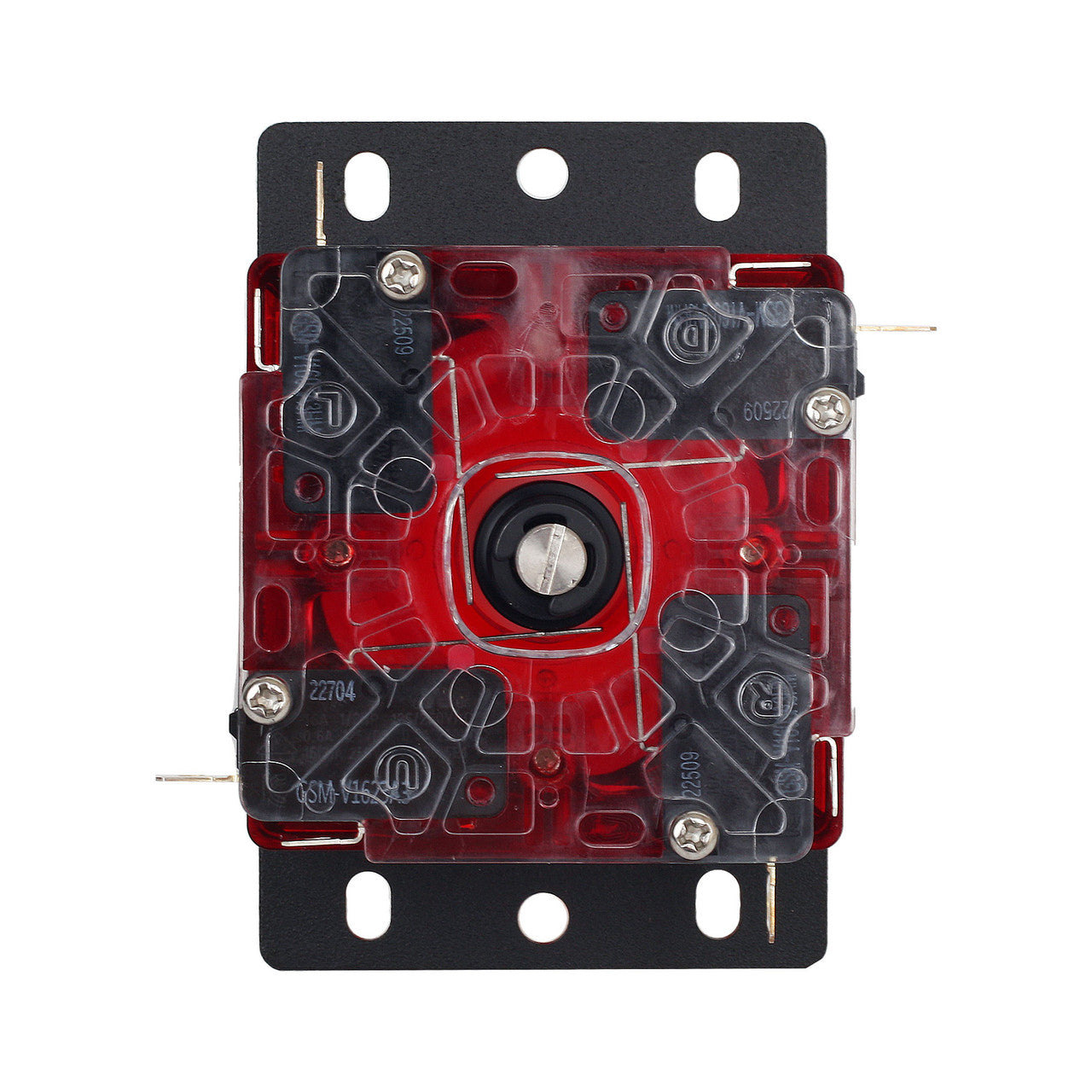

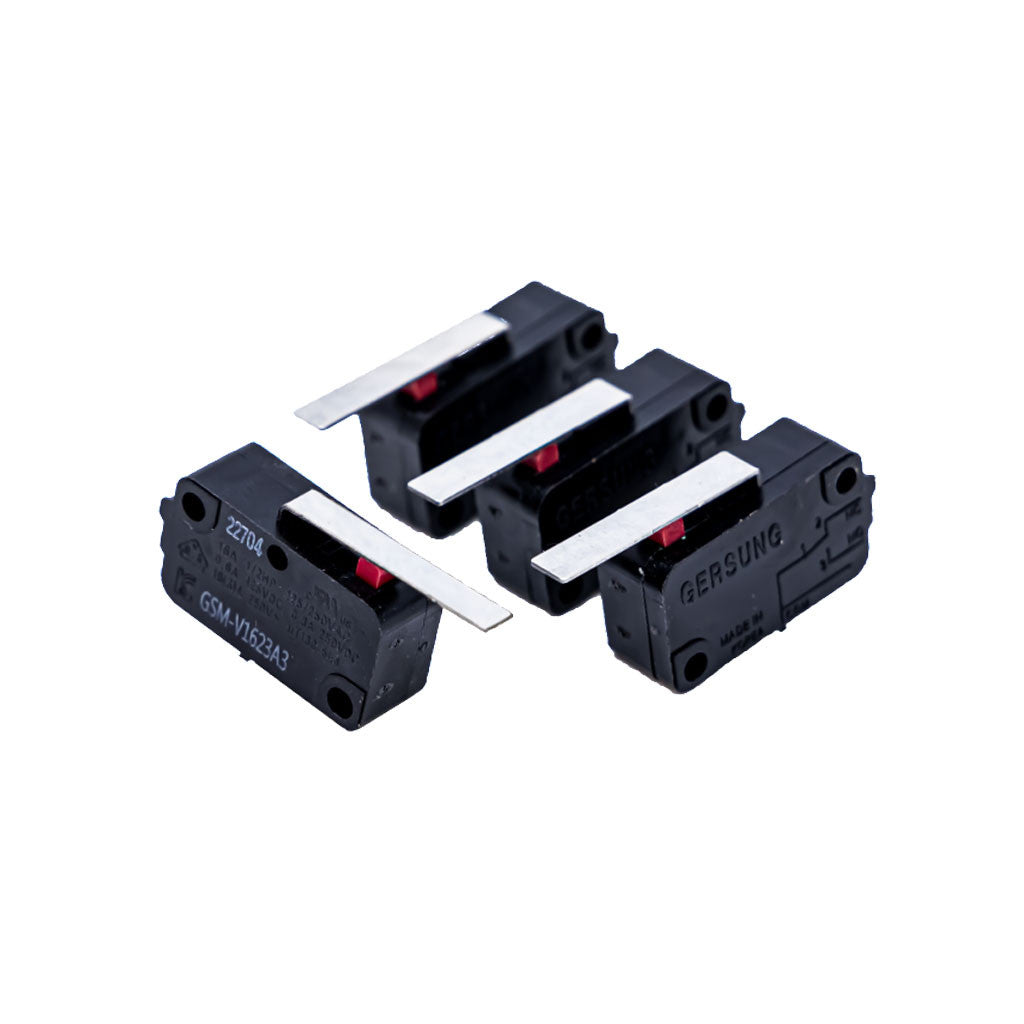

• Gersung microswitch configuration: Three A3KN wide-hinge switches and one standard A3 switch.
• Circle-square guide: Clear polycarbonate guide designed for controlled directional movement.
• Low-profile collar: 35 mm collar with a multi-mounting plate designed for compatible Sanwa JLF-style mounting layouts.
• Durable construction: Stainless-steel shaft, acetal actuator, and polycarbonate housing components.

Technical Specifications

• Brand: Crown / Samducksa
• Model: KNEE Lever Neo Edition

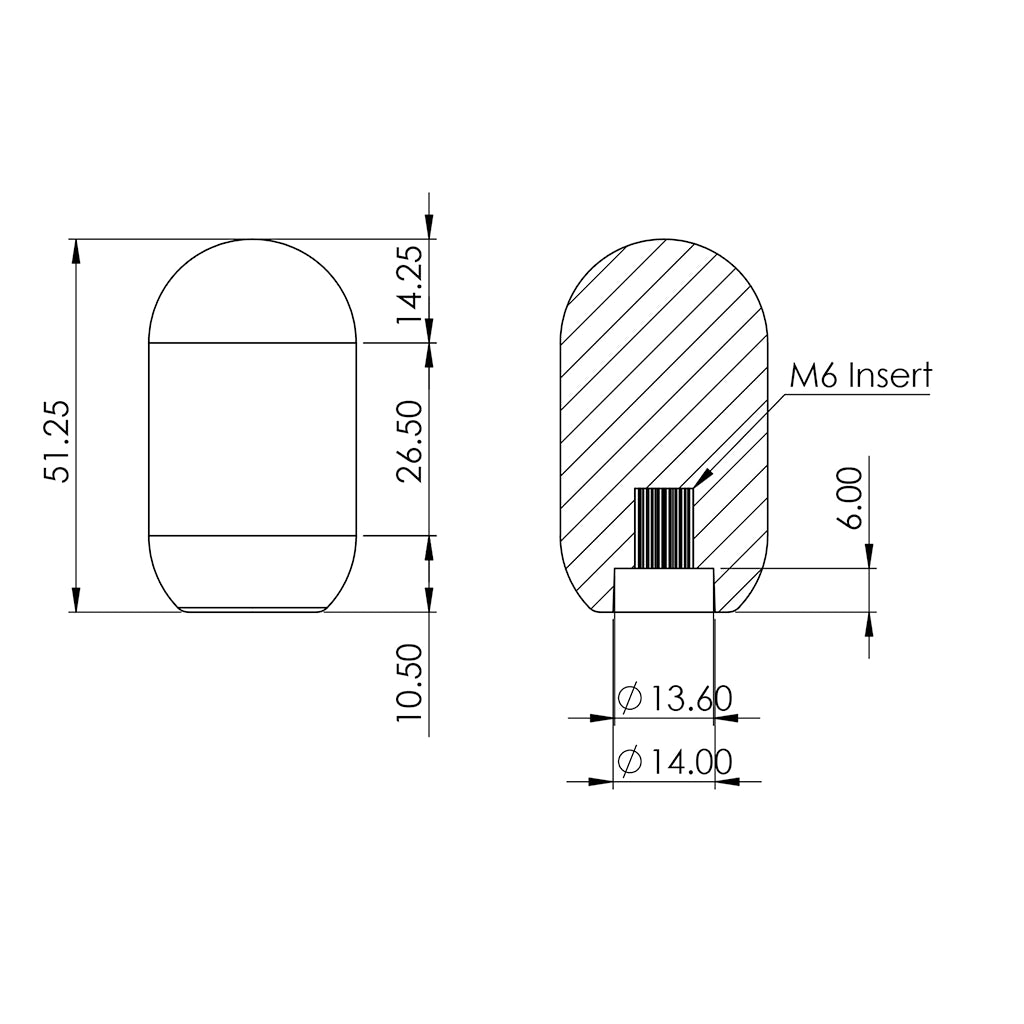

• Handle: Transparent red acrylic
• Shaft: Stainless steel
• Tension system: Specialized 30+ rubber grommet
• Microswitches: 3 × Gersung A3KN wide hinge + 1 × Gersung A3 standard hinge

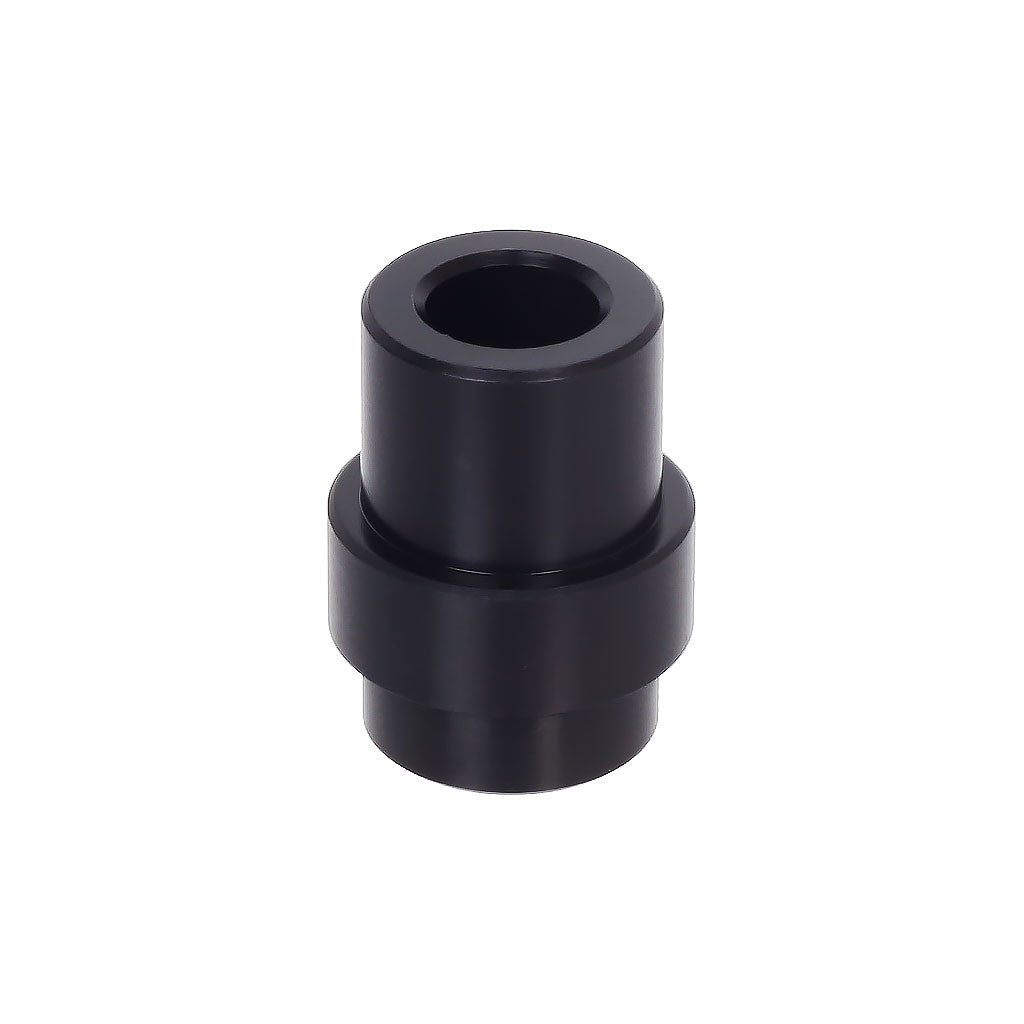

• Actuator: 16.1 mm acetal
• Guide: Clear polycarbonate circle-square
• Collar height: 35 mm
• Mounting: JLF-compatible multi-mounting plate

Installation and Compatibility

Before ordering, please verify that your fight-stick enclosure has:

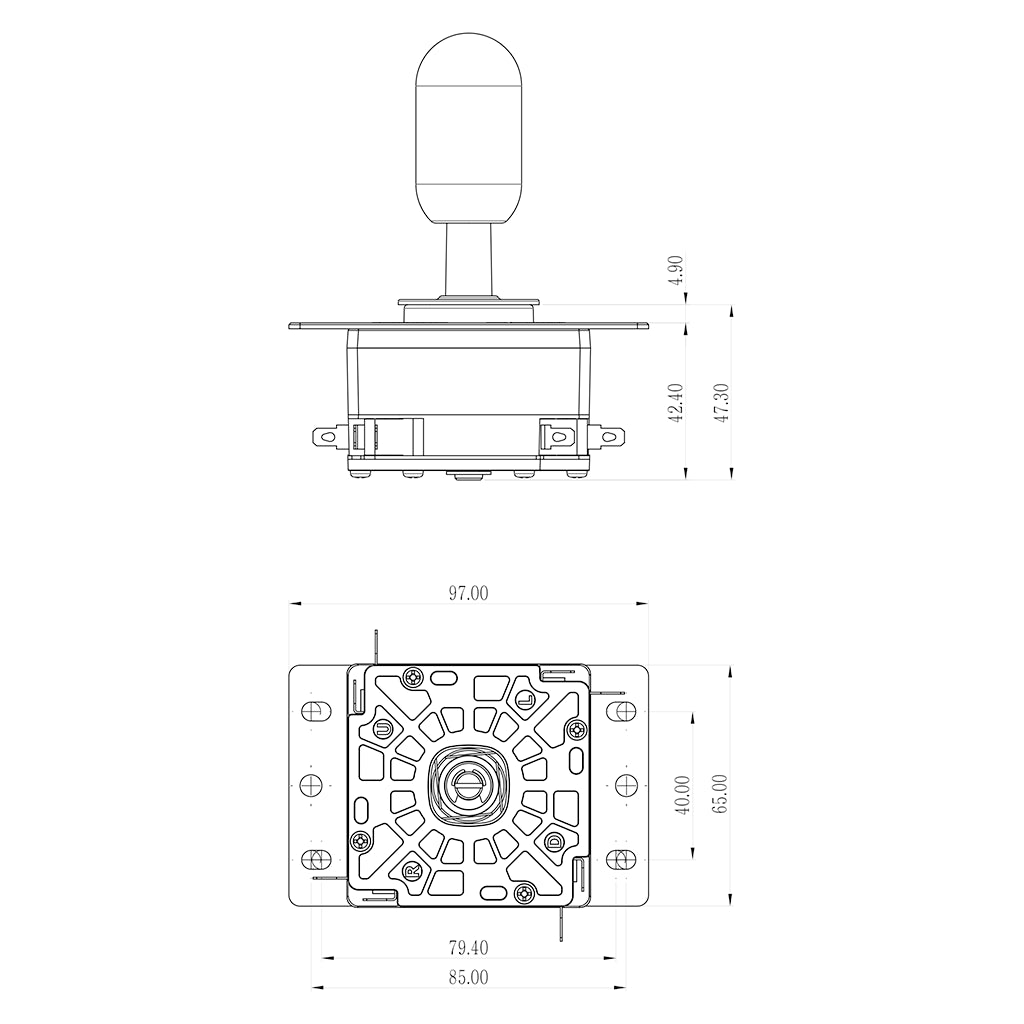

• At least 65 mm width × 97 mm length × 43 mm internal clearance for installation
• A compatible JLF-style mounting arrangement
• Sufficient clearance for the joystick body and shaft

Important wiring note: Depending on your existing fight-stick wiring, a separate 0.187-inch terminal-to-5-pin conversion harness may be needed. Check your current connector before purchasing.

What's Included

• 1 × Crown/Samducksa KNEE Lever Neo Edition arcade joystick assembly

This product is a replacement arcade joystick component, not a complete fight-stick controller.
