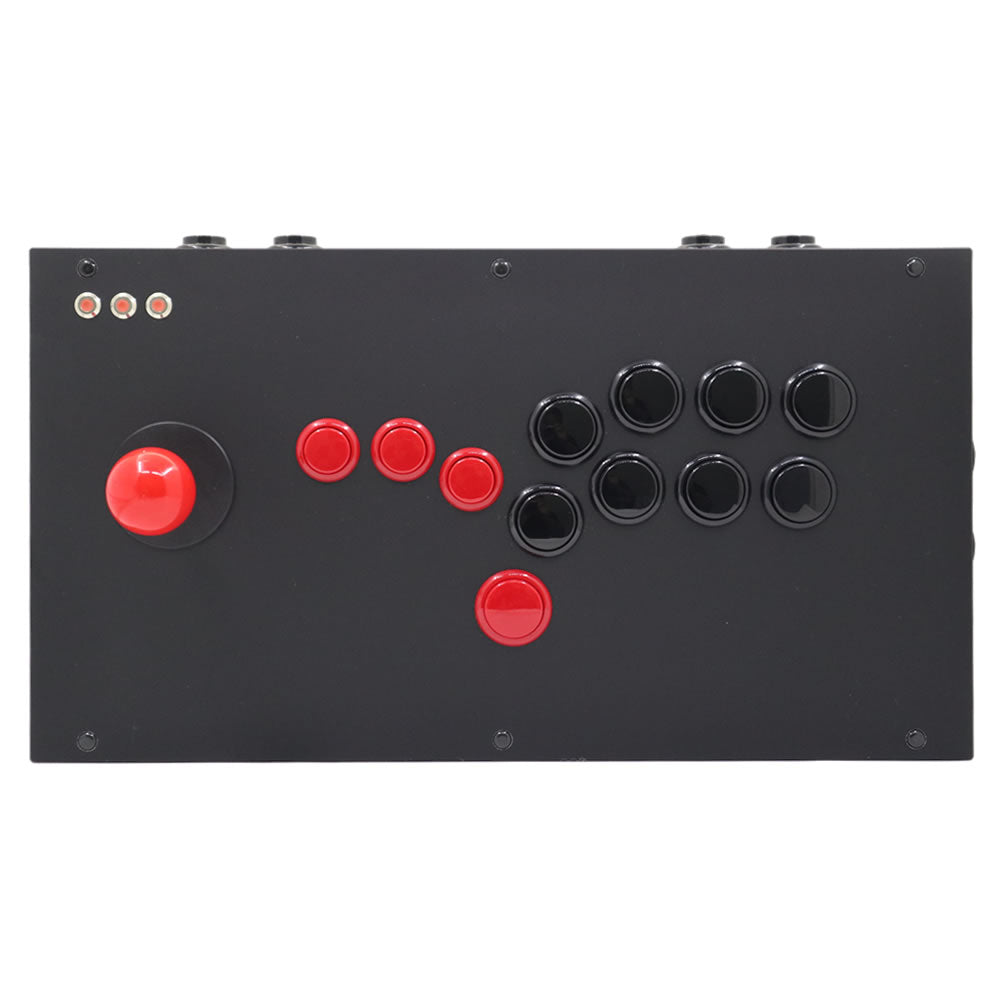

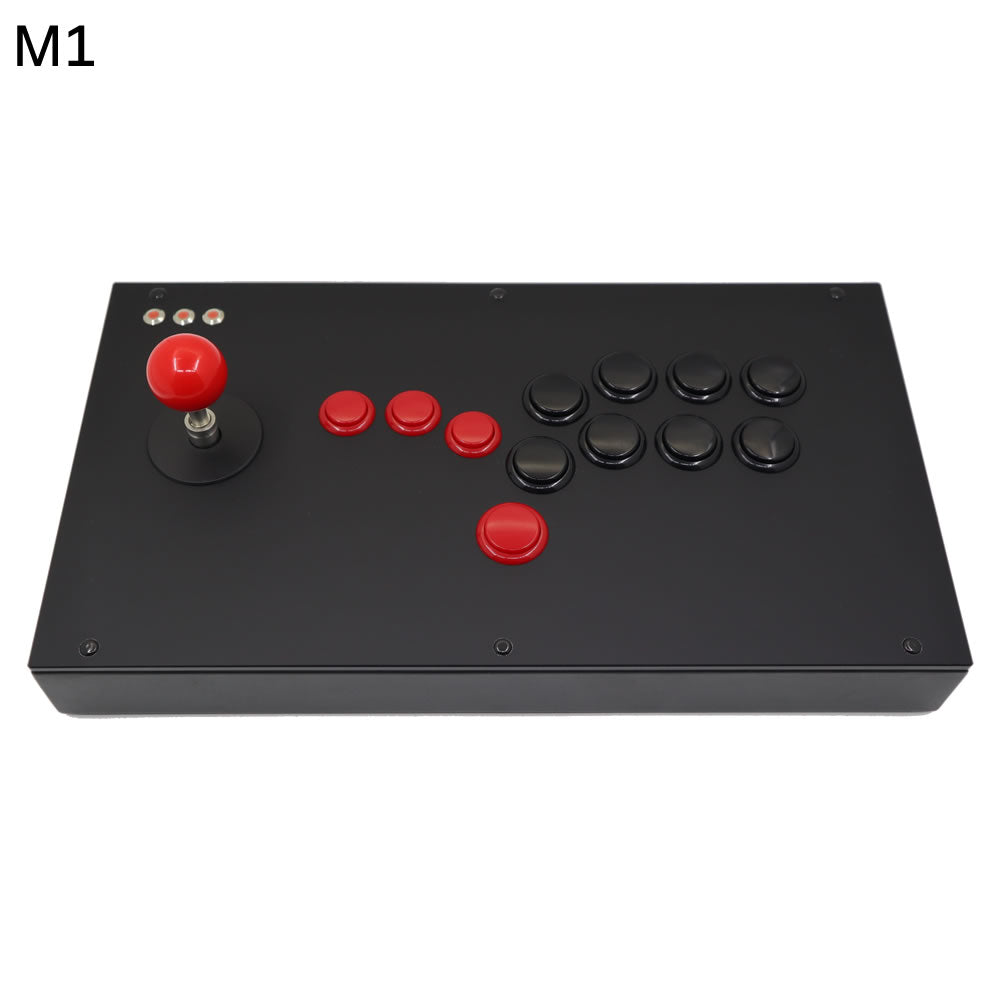

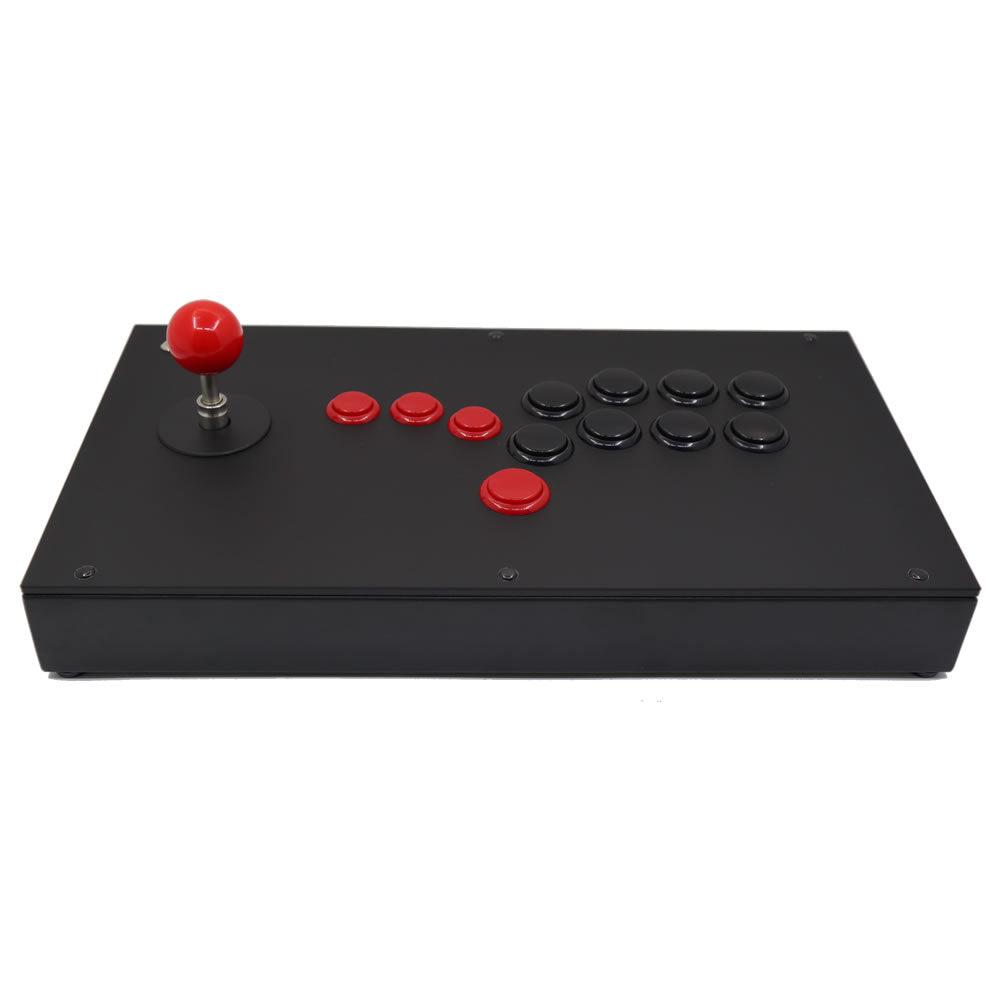

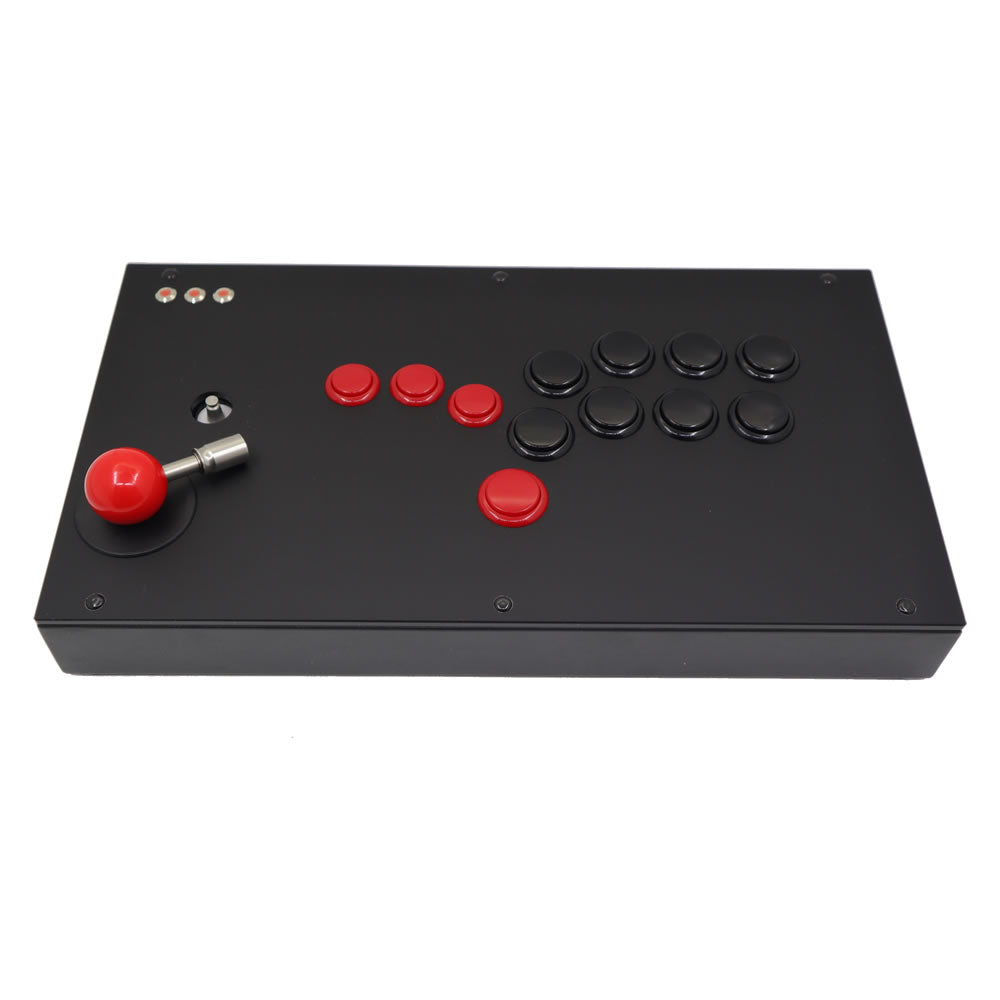

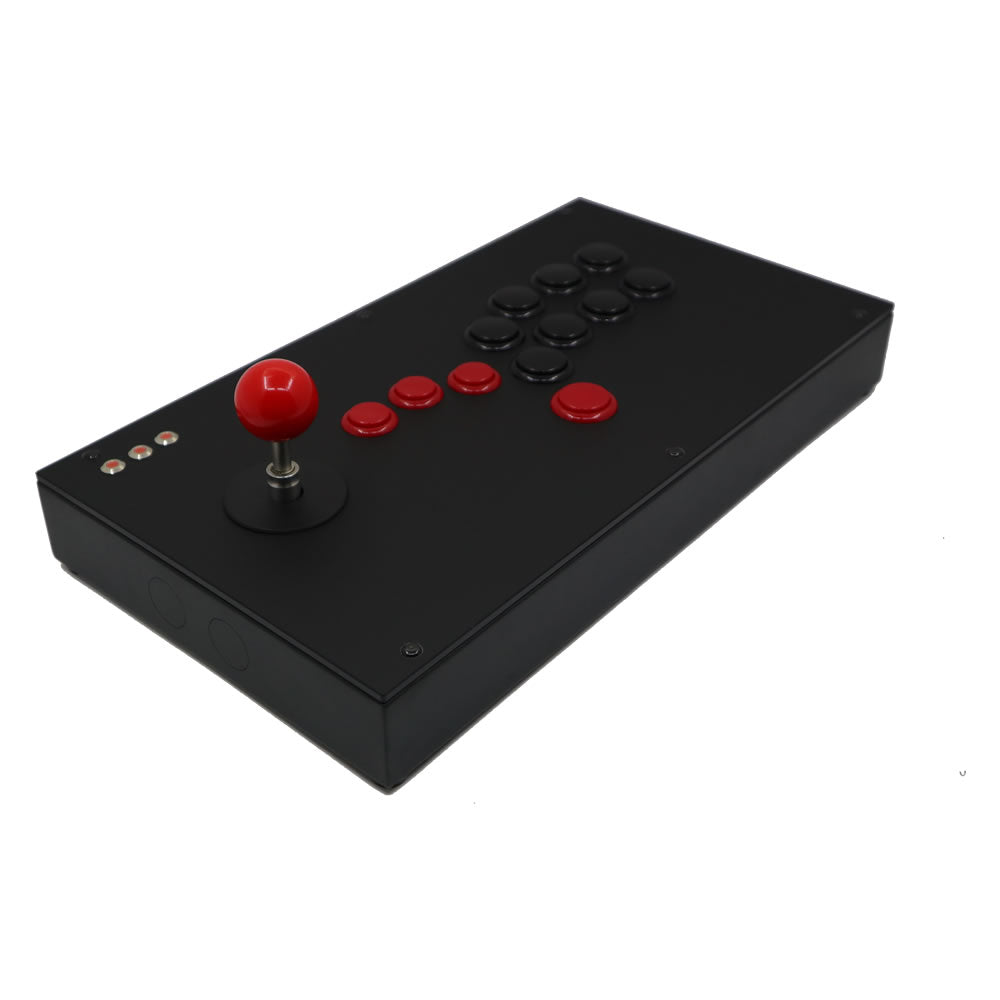

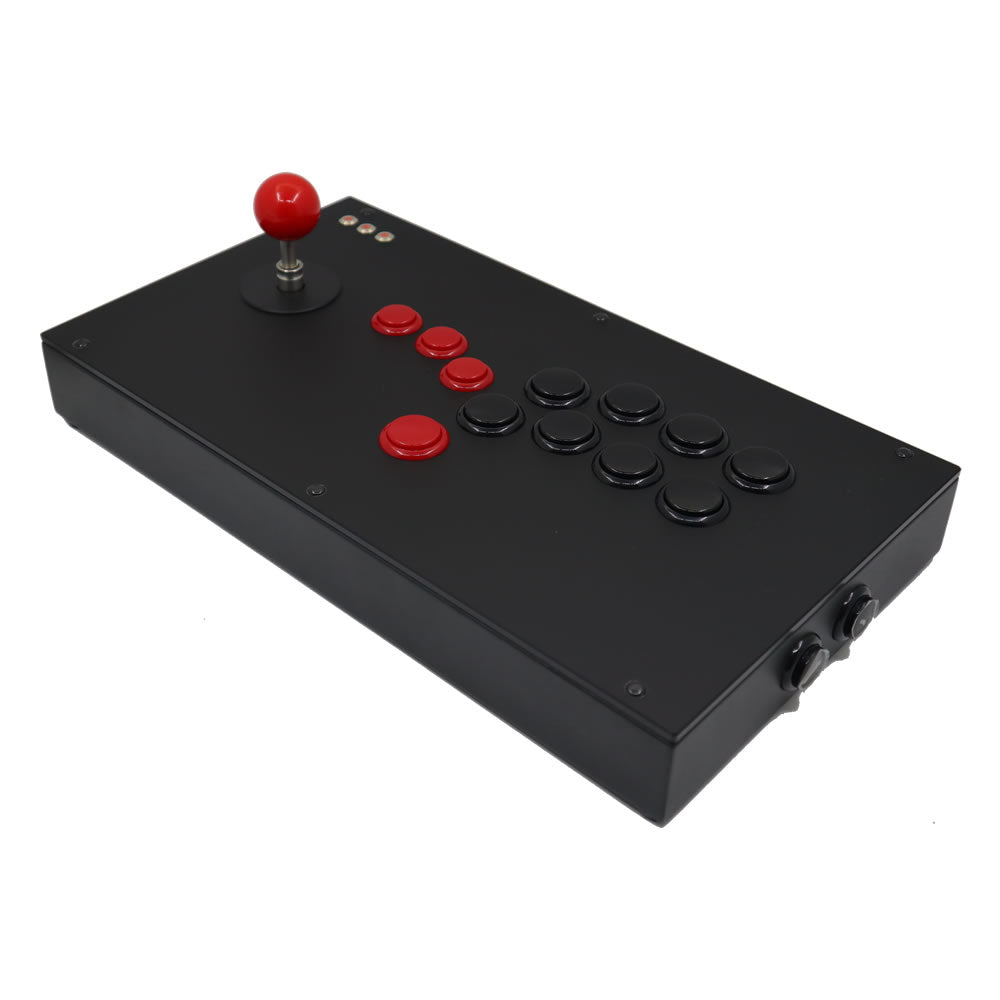

FightBox M1 has a Sanwa JLF-TP-8YT joystick and 3 Sanwa OBSF-24 buttons and 1 Sanwa OBSF-30 button on the left side of the joystick, both of them act as directional control functions at the same time. There are 8 Sanwa OBSF-30 buttons for the action buttons on the right side of the controller. You can use the joystick and these 8 buttons to combine to a traditional joystick to play game, or you can use the full button combination to play the game. This is called HitStick controller.
Features:

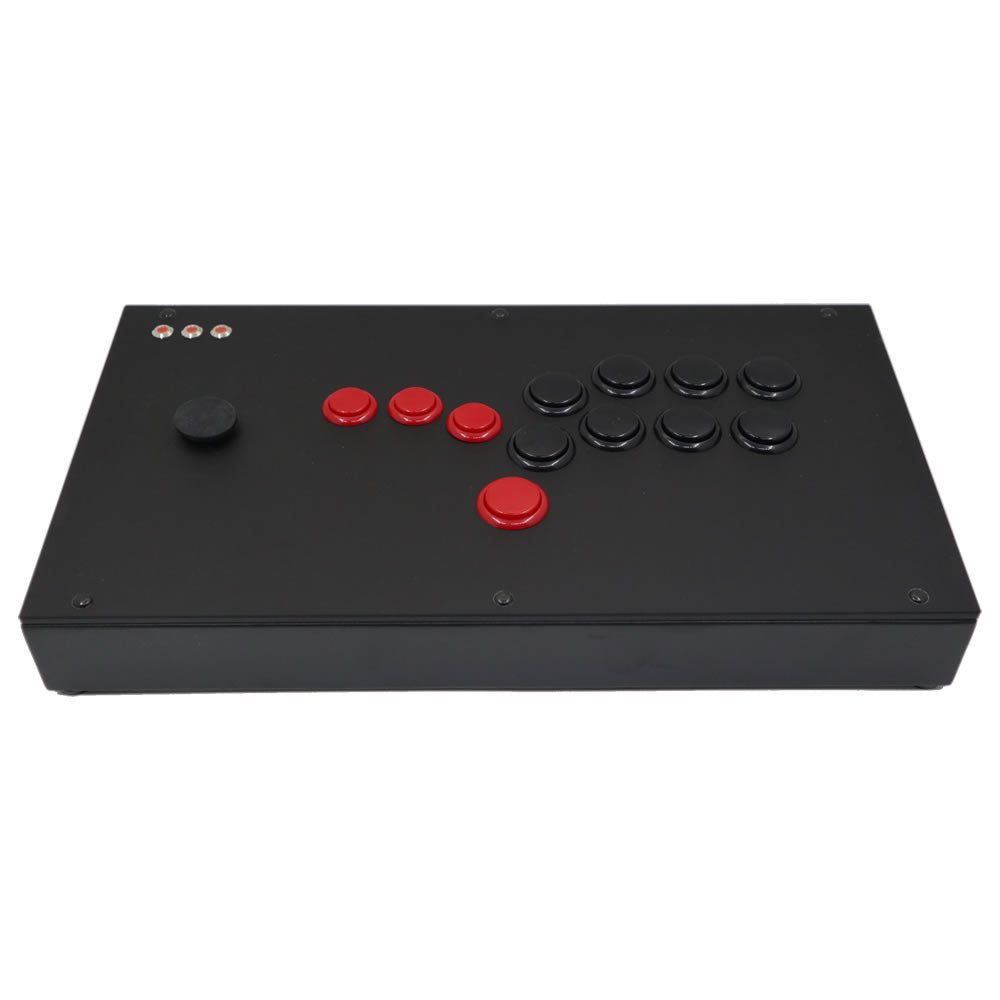

Sanwa JLF-TP-8YT Joystick + RAC-J300S Detachable Arcade Joystick Shaft

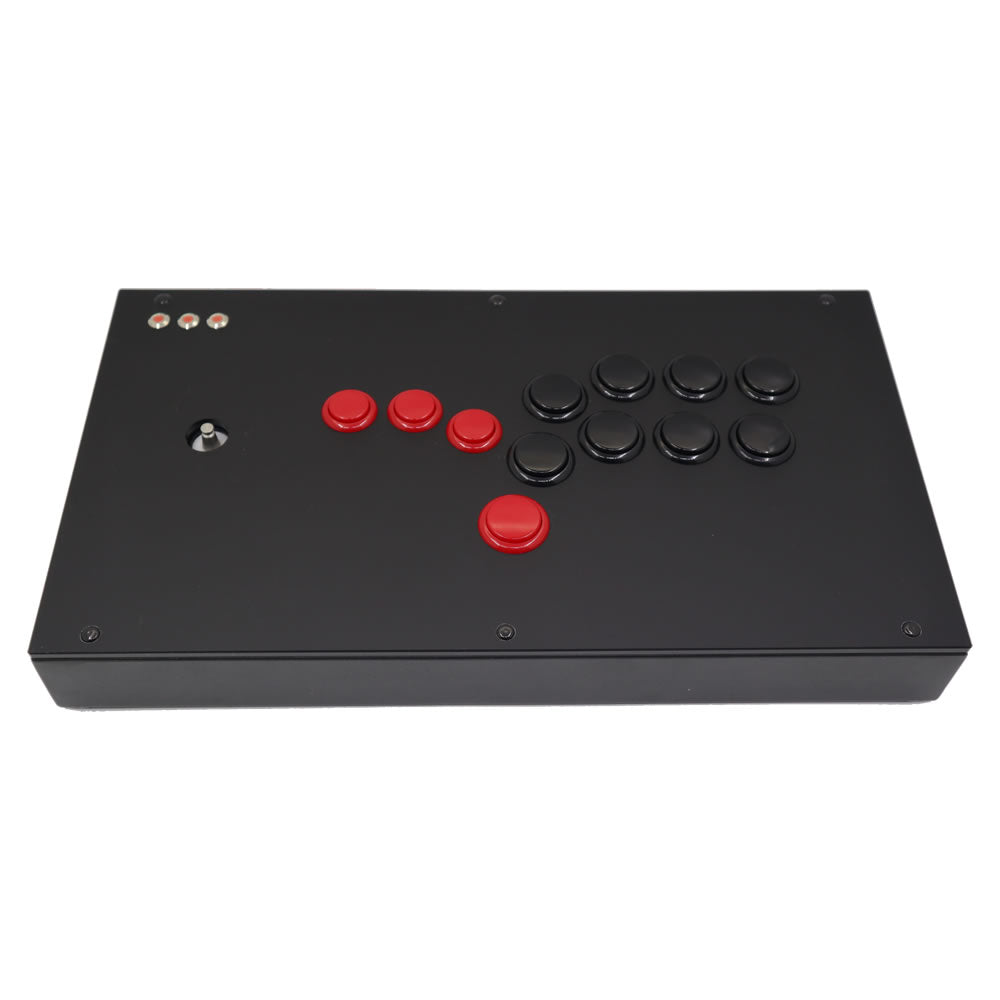

It employs a quick coupling mechanism which make it super easy to attach and detach joystick shaft.
4 push buttons as directional keys
8 push buttons as action buttons
All of above buttons are the original Sanwa OBSF-24 and Sanwa OBSF-30 buttons
USB interface(Type B to Type A) , more stable connection and data transmission

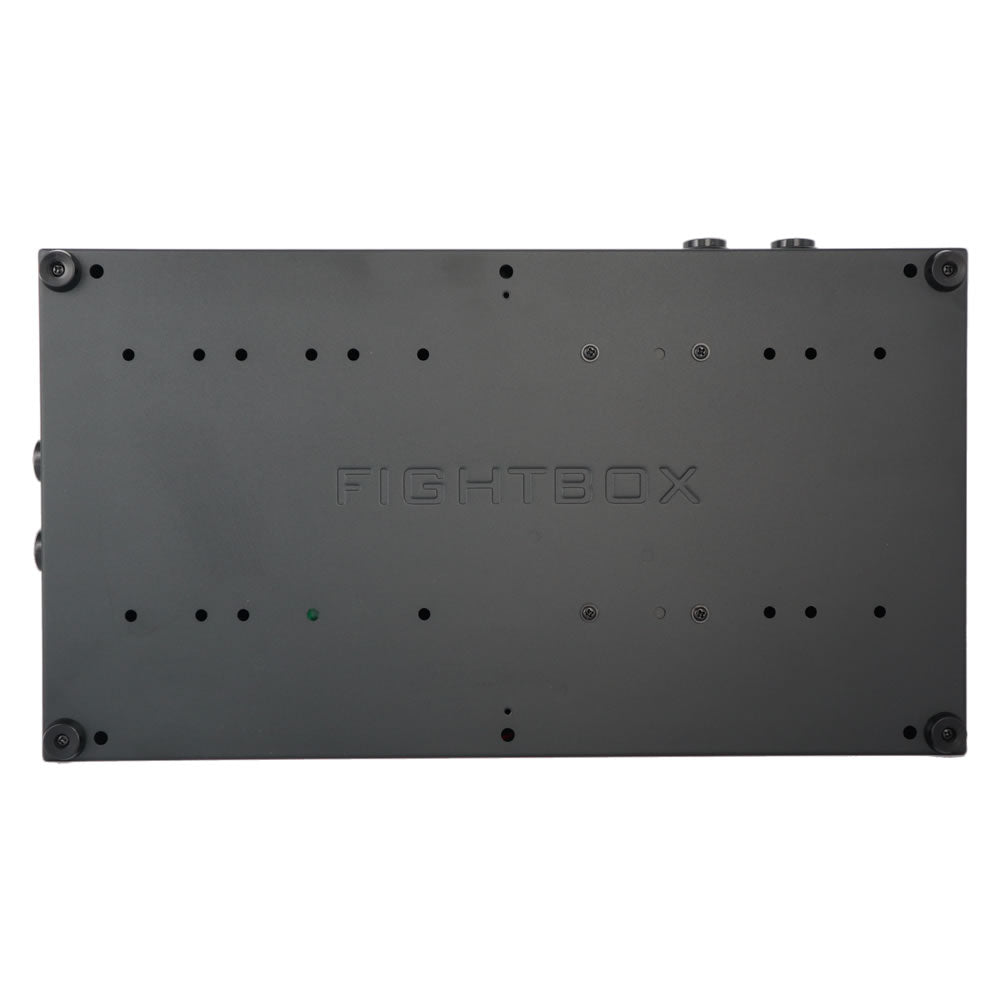

Four non-slip pads at the bottom to make the joystick more stable
SOCD Supported, support a tournament standard for All Button Leverless Game Controller, Up priority SOCD mode as default directional cleaning

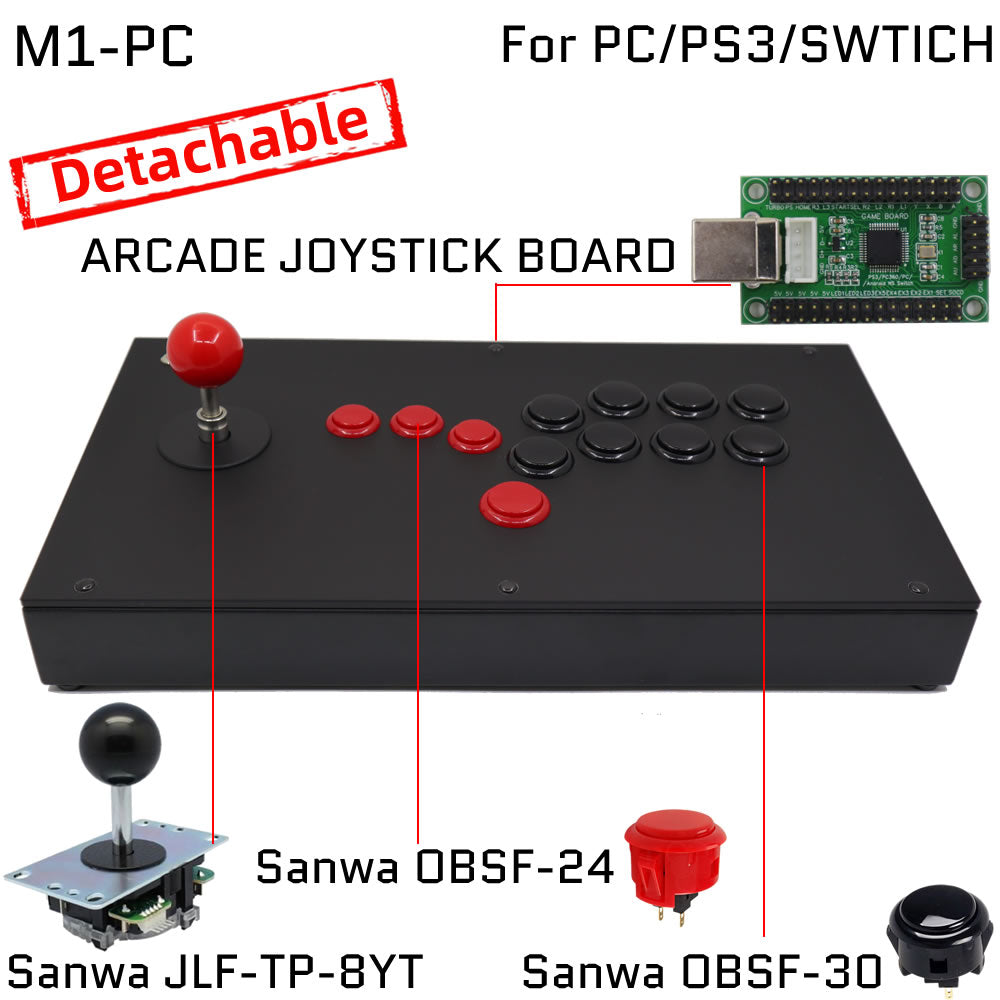

The PC version M1-PC
RAC-C800 Zero Delay Arcade Encoder inside
Compatible with PC/PS3/SWITCH

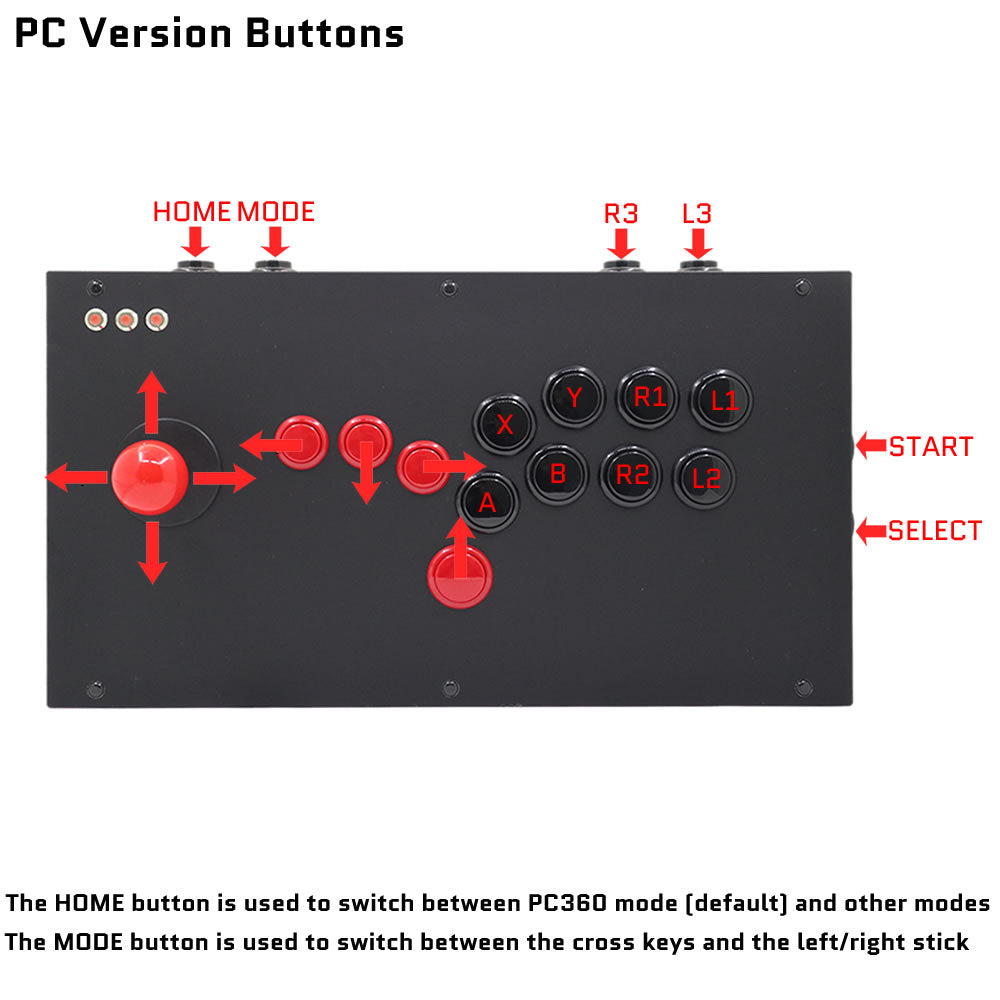

2 buttons on the side as start and select buttons
4 buttons on the back of case as Home, Mode, R3,L3

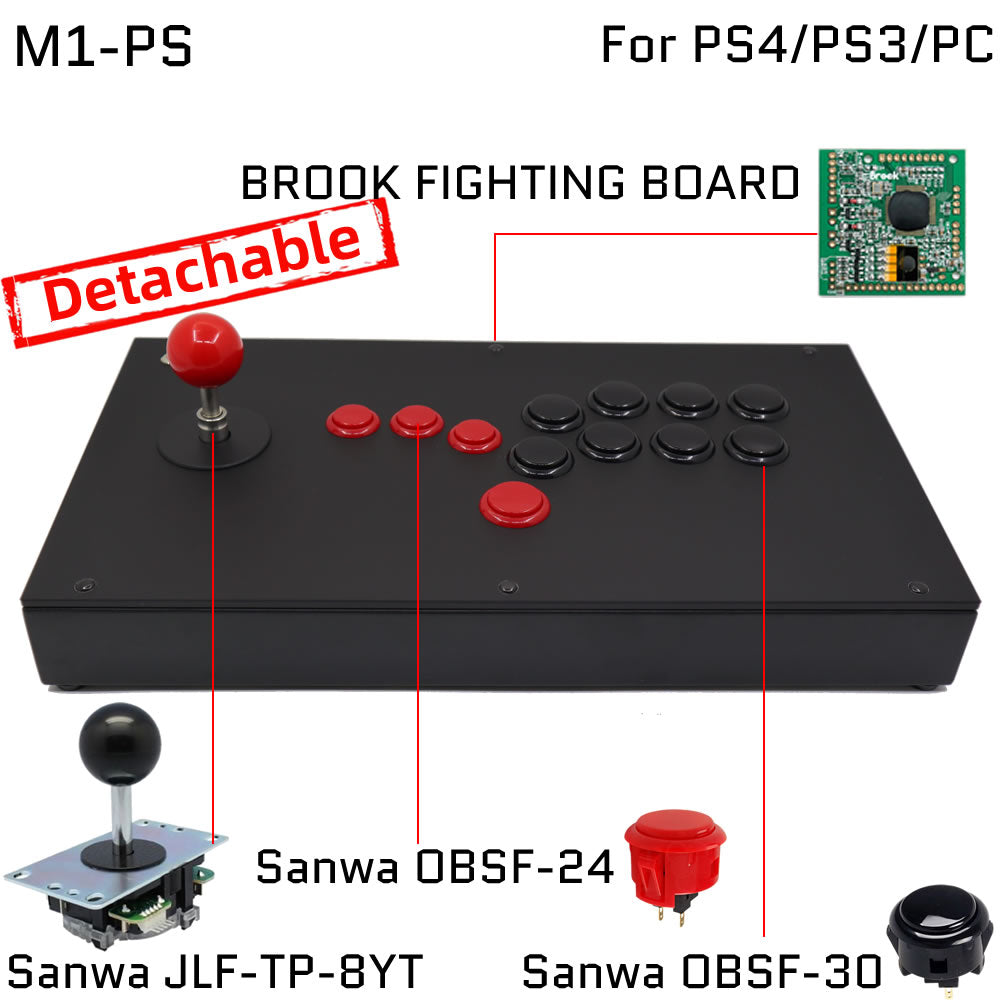

The PS4 version M1-PS
The Brook Fighting Board PS3/PS4 For PS4 inside
Compatible with PS5/PS4/PS3/PC
It supports playing PS4 games on PS5 but native PS5 games not supported

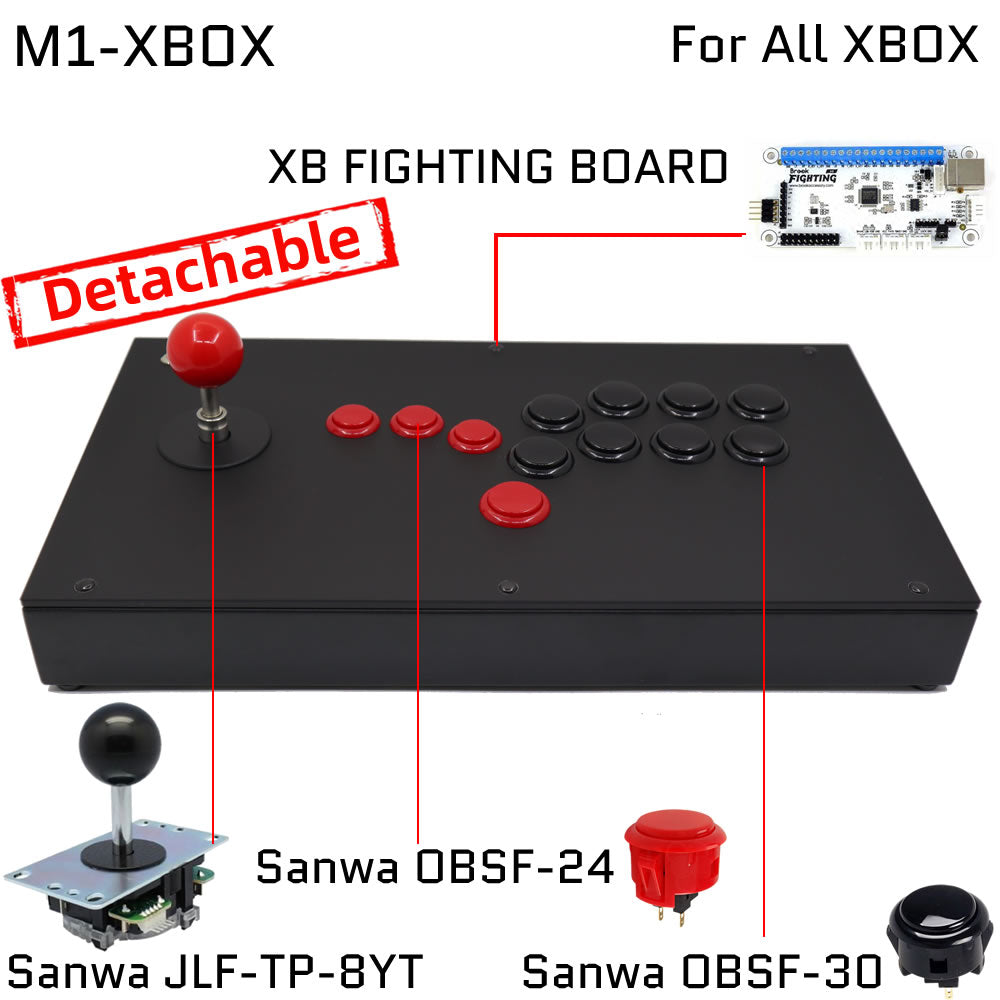

The XBOX version M1-XBOX
The Brook XB FIGHTING BOARD inside
Support Xbox Series X|S, Xbox One, Xbox 360, Xbox Original and PC

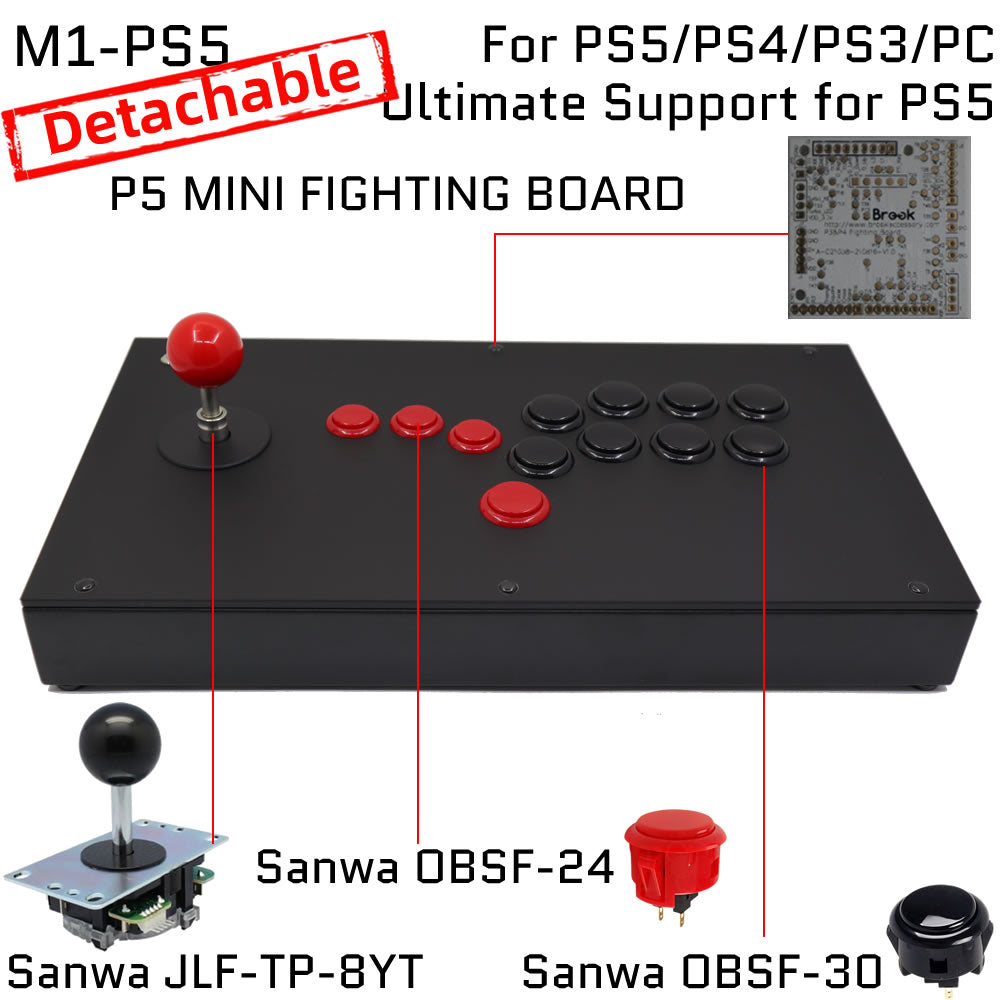

The PS5 version M1-PS5
The Brook P5 mini Fighting Board inside
Compatible with PS5/PS4/PS3/PC
It supports playing native PS5 Fighting games on PS5

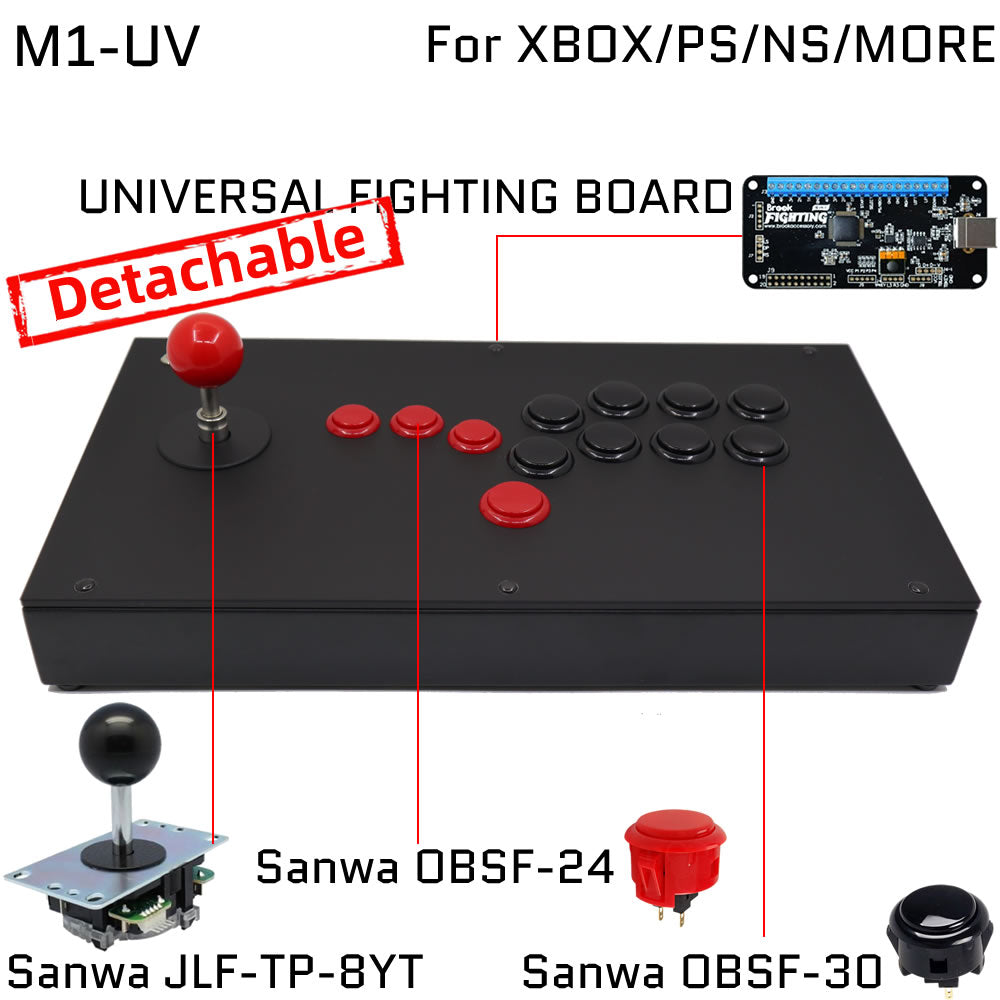

The Universal version M1-UV
The Brook Universal Fighting Board inside
Compatible with XBOX SERIES X|S, Xbox One, Xbox 360, PS4, PS3, Wii U PC, Switch, NEOGEO mini, PS Classic and MD mini
It supports playing PS4 games on PS5 but native PS5 games not supported

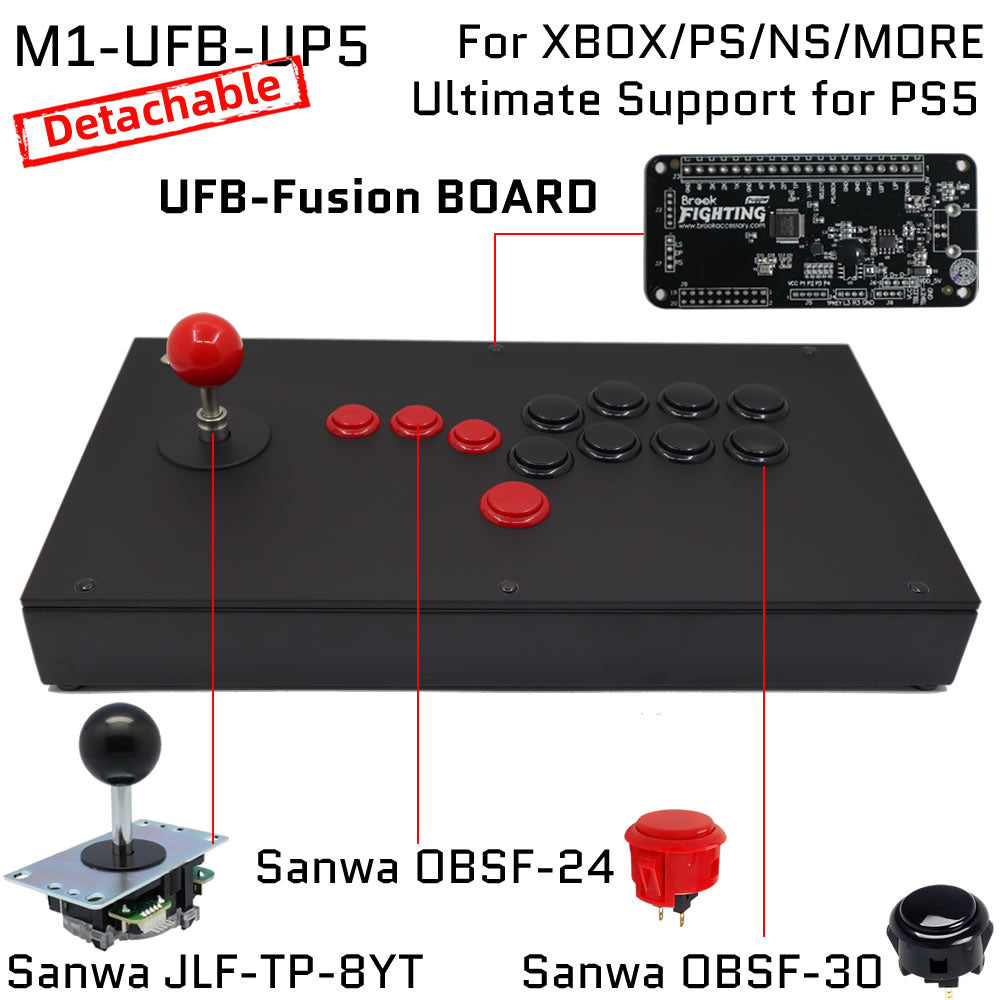

The Universal PS5 version M1-UFB-UP5
The Brook UFB-Fusion (Universal Fighting Board-Fusion) Board inside
Compatible with XBOX SERIES X|S, Xbox One, Xbox 360, PS5, PS4, PS3, Wii U PC, Switch, NEOGEO mini, PS Classic and MD mini
It supports playing native PS5 Fighting games on PS5
For M1-PS, M1-PS5, M1-UV, M1-UFB-UP5

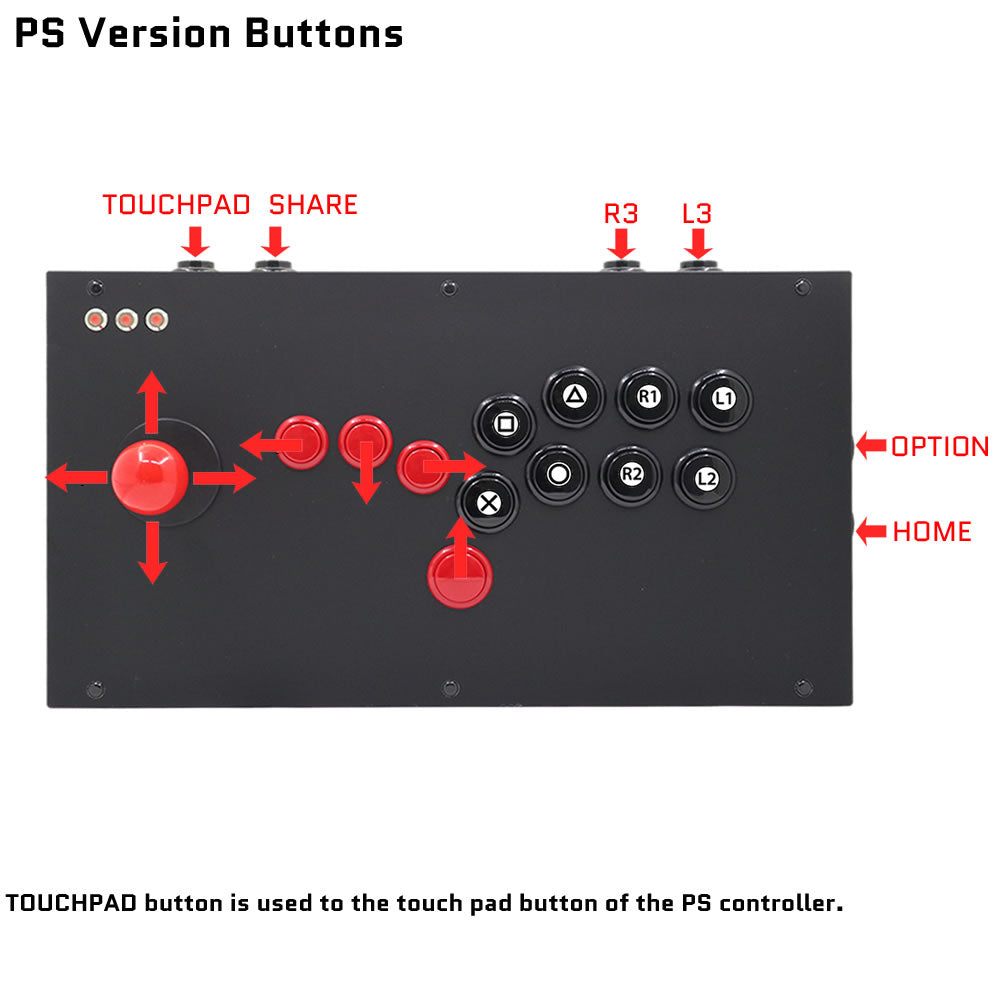

4 buttons on the back of case as R3, L3, Share, Touchpad buttons
Direct connection to the game console does not require a controller, completely replacing all functions of the controller

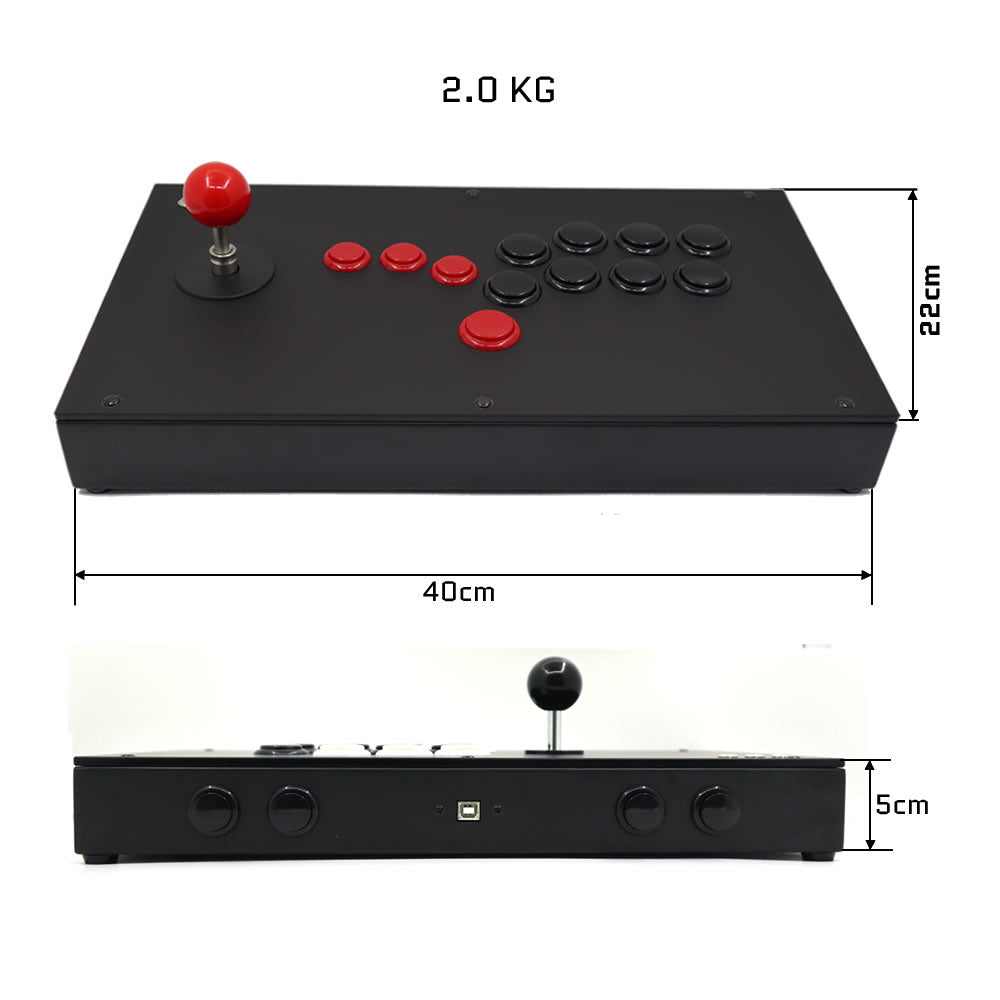

Specification:
Cable type: USB (Type B to Type A)
Cable length: About 3m
Case Material: Metal
Panel Material: Black Matte Acrylic
Panel Size: 40x22cm
Product Height: 4.5cm
Product Weight: 1.96kg
About SOCD
PC Version support three SOCD modes:
Neutral SOCD mode (UP + DOWN = NEUTRAL, LEFT + RIGHT = NEUTRAL)
Up priority SOCD mode (UP + DOWN = UP, LEFT + RIGHT = NEUTRAL)
Last win SOCD mode(UP + DOWN = DOWN, LEFT + RIGHT = RIGHT, DOWN + UP = UP, RIGHT + LEFT = LEFT)
Other Version(PS,PS5,XBOX,UV,UFB-UP5) need to go to the official website of Brook to update the latest firmware, support multiple SOCD modes, key combination switching.
Package Includes:
1 x FightBox M1 All Button Leverless Arcade Game Controller for PC/PS/XBOX/SWITCH
