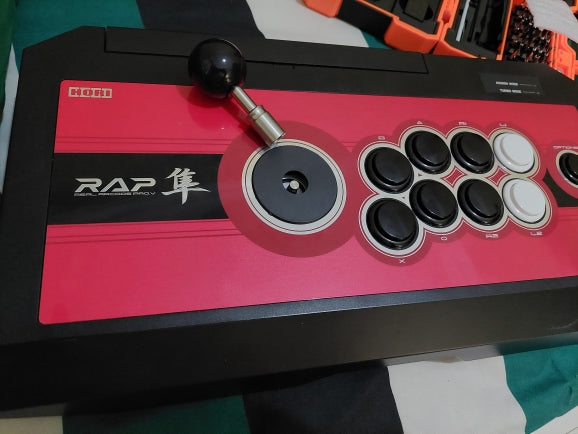

RAC-J300S Detachable Arcade Joystick Shaft Quick Release DIY Parts

Features:

RAC-J300S Detachable Arcade Joystick Shaft features two-piece shaft design. It employs a quick coupling mechanism which make it super easy to attach and detach joystick shaft.

The top part of the shaft is equipped with a spring-loaded housing. To attach, pull up the housing with your thumb and forefingers, align it with the bottom piece, then release the housing. To detach, simply pull up the spring-loaded housing and pull off.

By replacing the shaft of the existing Joystick with RAC-J300S Detachable Arcade Joystick Shaft, players will be able to enjoy the convenience of detaching the protruding joystick shaft for easier transportation and storage.

Compatible: Sanwa JLF-TP-8YT and compatible arcade joysticks

Only Joystick Shaft, not including joystick.

Steps：

1. Remove the retaining ring on the SAWAN JLF-TP-8YT Joystick shaft.
2. Remove the SANWAN joystick shaft.
3. Insert the RAC-J300S Detachable Arcade Joystick Shaft into the joystick body.
4. Insert the retaining ring into the groove of the Joystick shaft.
5. Detach the top piece of the joystick by pulling up the housing with your thumb and forefingers.
6. Install the balltop to the joystick using the hex key.
7. Pull up the housing again and rest the top piece on the bottom piece, then release the housing.

Check the tutorial video on https://youtu.be/0jzPj7fSffU

About Shipping:

For US buyers, we will ship from US warehouses.

For international buyers, we will ship from China ShenZhen warehouses.

Package Includes:

1 x RetroArcadeCrafts RAC-J300S Detachable Arcade Joystick Shaft Quick Release DIY PARTS

1 x Hex Key

1 x Solid black dust cover
