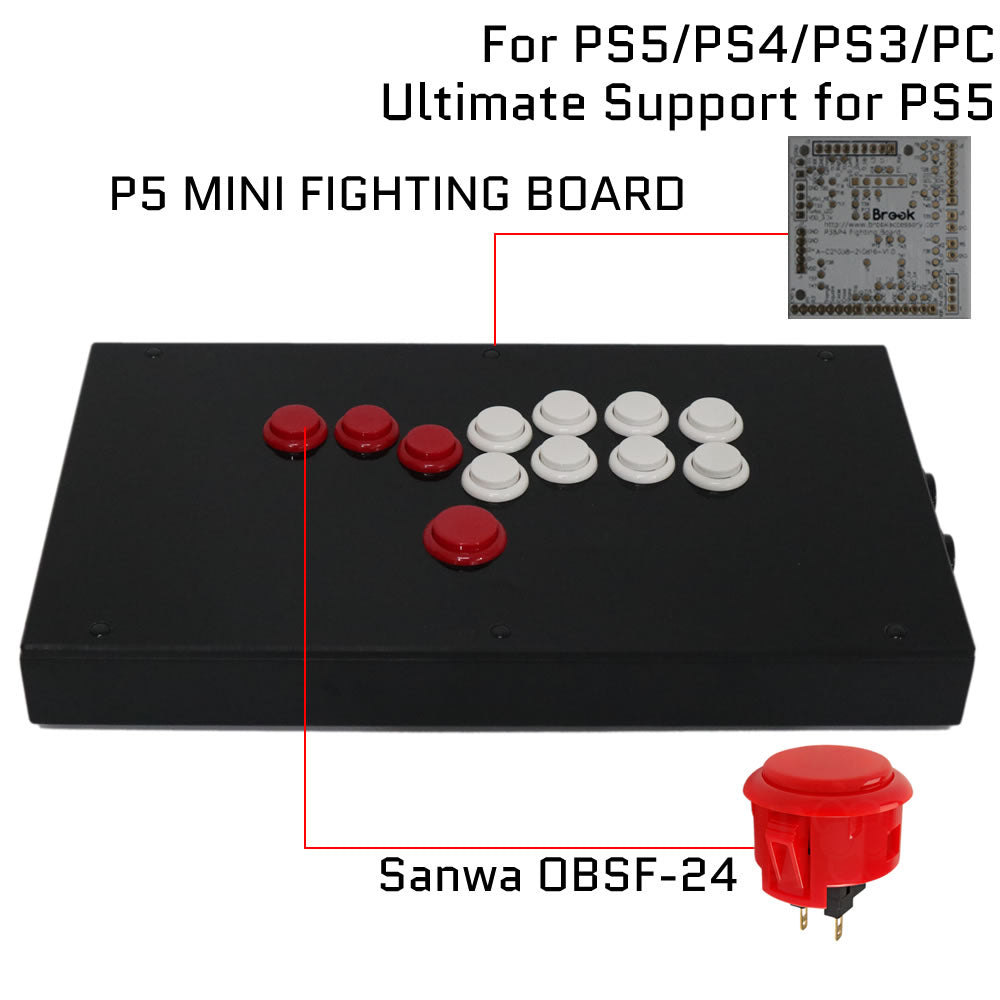

The RAC-J800B has 3 Sanwa OBSF-24 buttons and 1 Sanwa OBSF-30 button on the left side of the controller, instead of the traditional analog joystick, with 8 Sanwa OBSF-24 buttons for the action buttons on the right side of the controller.
4 push buttons as directional keys
8 push buttons as action buttons
All of above buttons are the original Sanwa OBSF-24 and OBSF-30 buttons
Six non-slip pads at the bottom to make the joystick more stable
SOCD Supported, UP + DOWN = UP, LEFT + RIGHT = NEUTRAL directional cleaning, a tournament standard for all buttons Game Controller
For the PC version
Zero Delay Arcade USB Encoder inside
2 buttons on the side as start and select buttons
For the Xbox version
The Brook XB FIGHTING BOARD inside
Support Xbox Series X|S, Xbox One, Xbox 360, Xbox Original and PC
For the PS4 version
The Brook Fighting Board For PS4 inside
For the PS5 version
The Brook Fighting Board and and UFB-UP5 inside
4 buttons on the back of case as R3, L3, Share, Touchpad buttons
2 buttons on the side of case as home and options buttons
Cable type: USB (Type B to Type A)
Cable length: about 3m
Case Material: Metal
Panel Material: Acrylic
Panel Size: 35x20cm
Product Height: 4.5cm
Product Weight: 1.5kg
About DIY Panel Options:
The DIY panel includes a 2MM transparent acrylic panel and a 3MM transparent acrylic panel.
Customers can print color patterns on A3 paper and put it in the middle of the two panels.
The default kit does not include the A3 paper, just 2 transparent panels.
DIY products require customers to have a certain amount of hands-on ability.
Video of disassembling the panel: https://youtu.be/2G0tZTFuW0A
A3 paper template file: https://drive.google.com/file/d/1p1RR55IGm6L86olpLrMt6IvCuUcRAqVN/view?usp=sharing
PC Version support three SOCD modes:
Neutral SOCD mode (UP + DOWN = NEUTRAL, LEFT + RIGHT = NEUTRAL)
Upper priority SOCD mode (UP + DOWN = UP, LEFT + RIGHT = NEUTRAL)
Last win SOCD mode(UP + DOWN = DOWN, LEFT + RIGHT = RIGHT, DOWN + UP = UP, RIGHT + LEFT = LEFT)
You hold down the MODE and START keys, and then press the LEFT arrow key to switch to the last win SOCD mode.
You hold down the MODE and START keys, and then press the UP arrow key to switch to the upper priority SOCD mode.
You hold down the MODE and START keys, then press the DOWN arrow keys to switch to neutral SOCD mode.
Other Version(PS,PS5,XBOX,UV,UFB-UP5) need to go to the official website of Brook to update the latest firmware, support multiple SOCD modes, key combination switching.
For all version, Upper priority SOCD mode as default.
1 x RAC-J800B All Buttons Arcade Joystick Fight Stick For PS5/PS4/PS3/PC
We will ship them from our Shenzhen factory in China..
