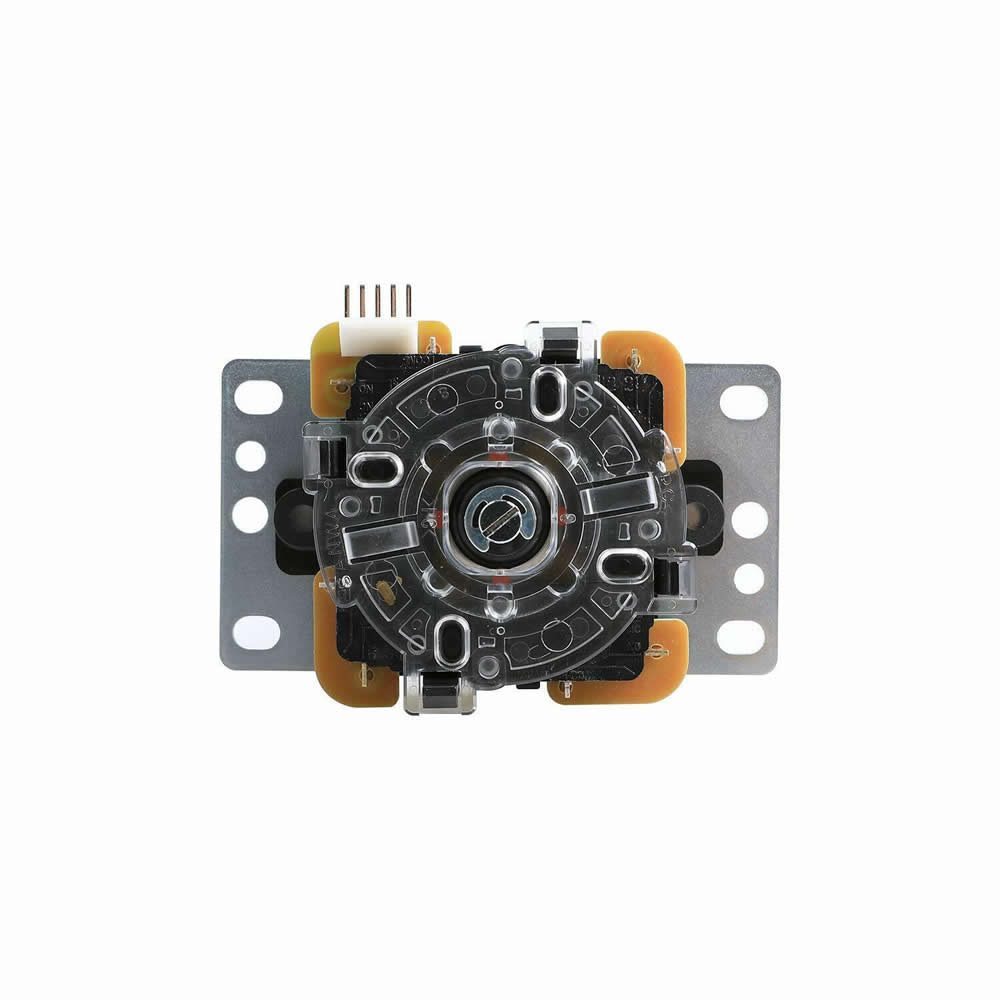

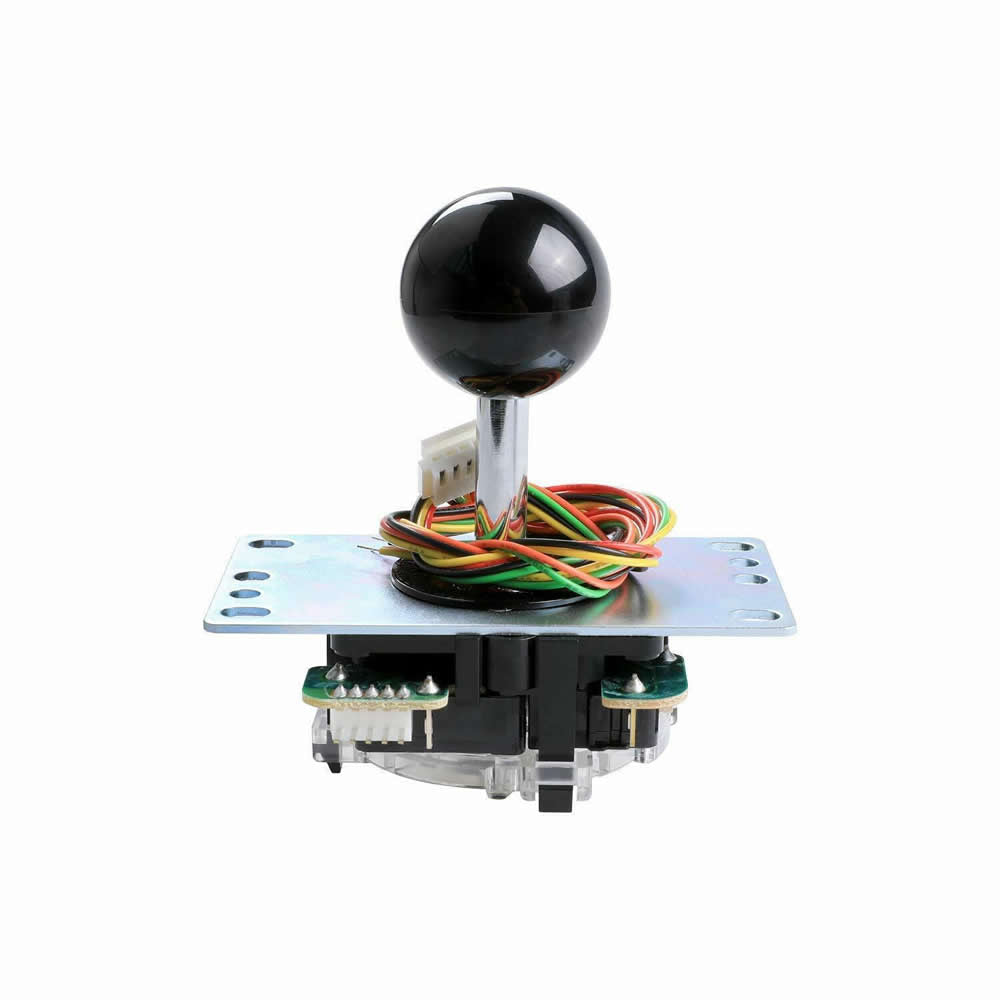

Sanwa JLF-TP-8YT Arcade Joystick RAC-J300S Detachable Joystick Shaft

  • Sale
  • Regular price


Free shipping !


Shopify secure badge

Sanwa Joystick is a Japan-made joystick built with premium quality, high precision and reliability. It is used in many Japanese made arcade cabinets created by Sega, Namco, Taito, etc. Thanks to the short travel and light spring pressure of the joystick, players can make special moves more quickly and input the correct commands in tight timings. Firm Construction and durable materials make it sturdy with a long life span. Sanwa Joystick is regarded as one of best joysticks among game players.

Sanwa joystick is not only suitable for replacement in most Arcade machines, but is also suitable for home console joystick controllers such as the Mad Catz Street Fighter joystick. More and more home users are modifying their joystick controller and installing Sanwa parts for a better playing experience. In addition, famous video Game accessories factories such as Hori equip many of their joystick controllers with Sanwa joysticks.

Features:

    High quality Japan-made joystick

Color choose from : Red/Blue/Green/Yellow/Black/White/Pink

Suitable for control panels made of steel or plastic to a max. of 5mm thick

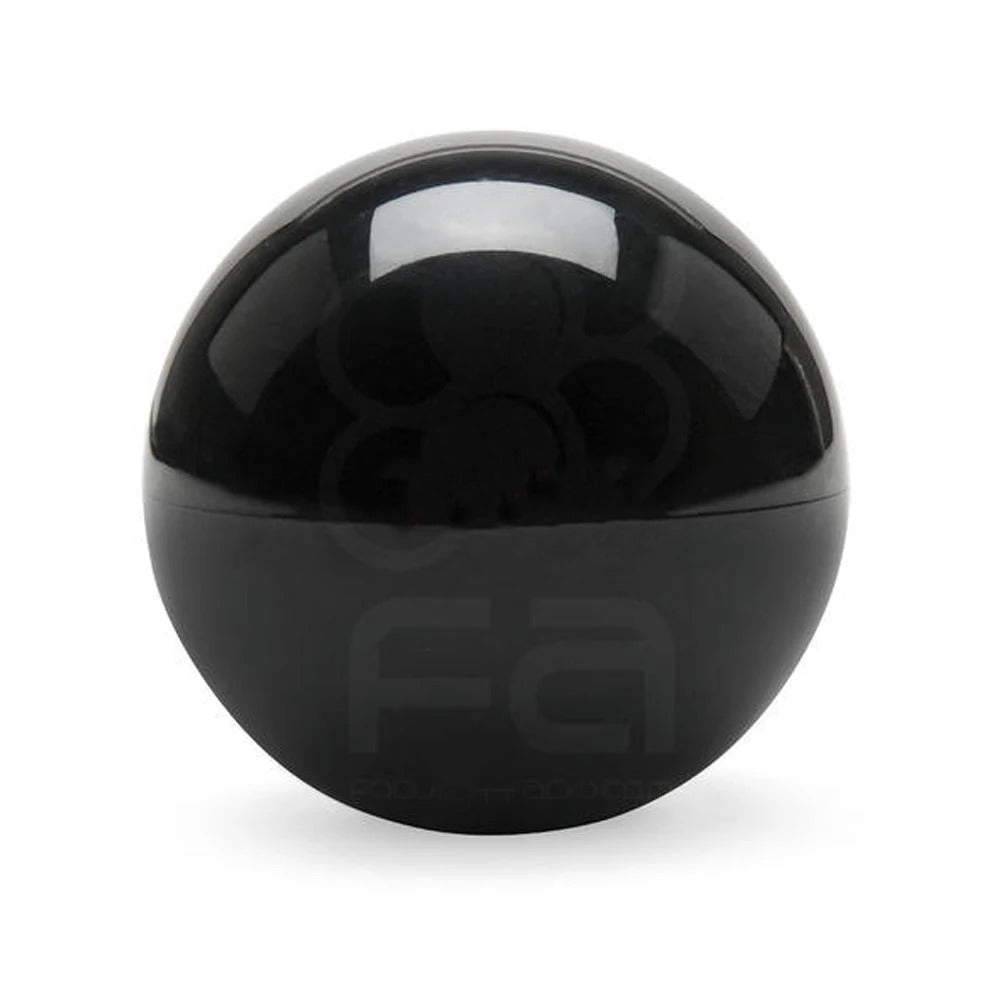

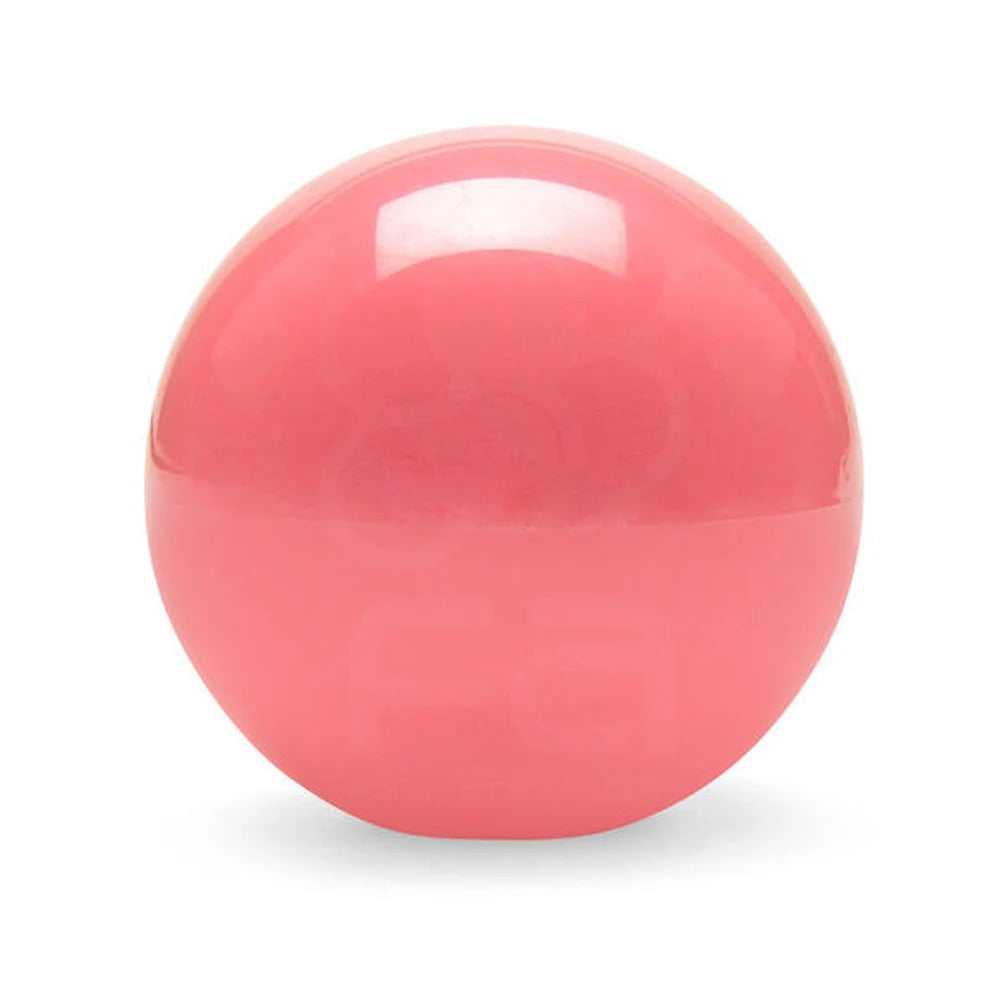

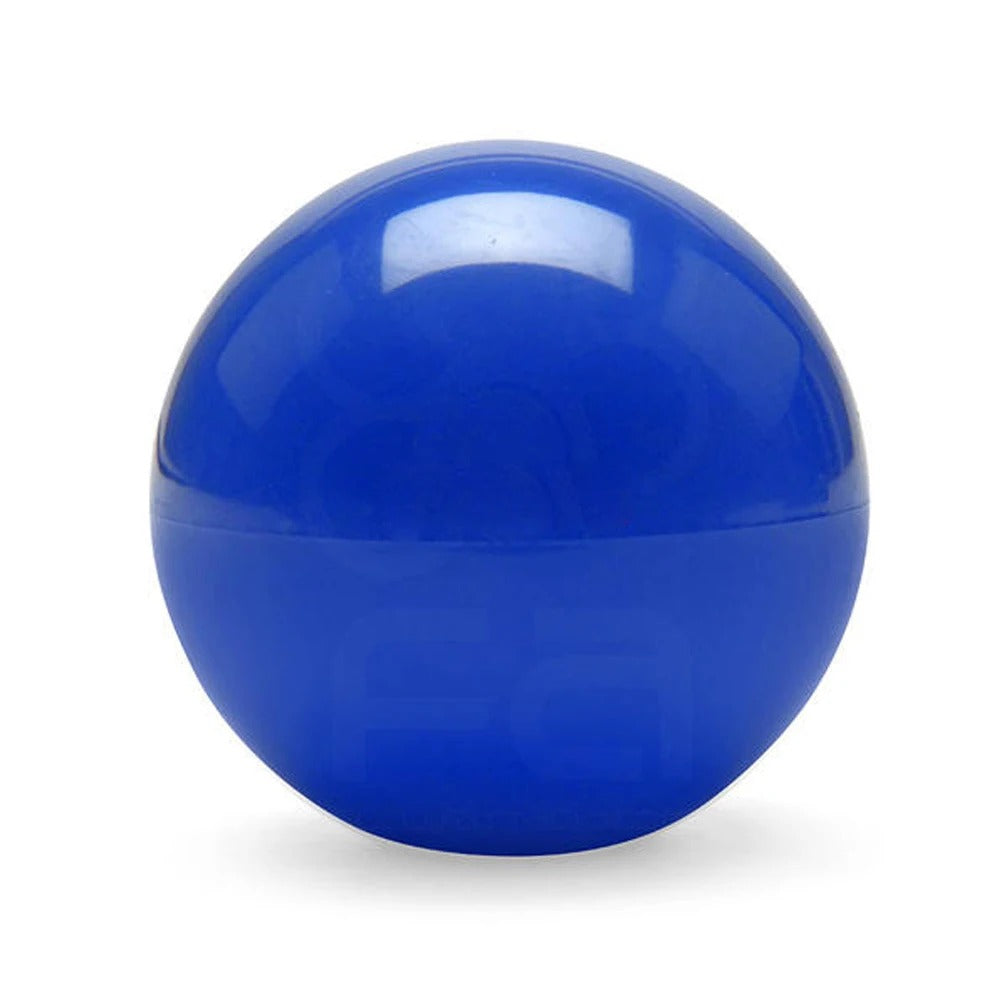

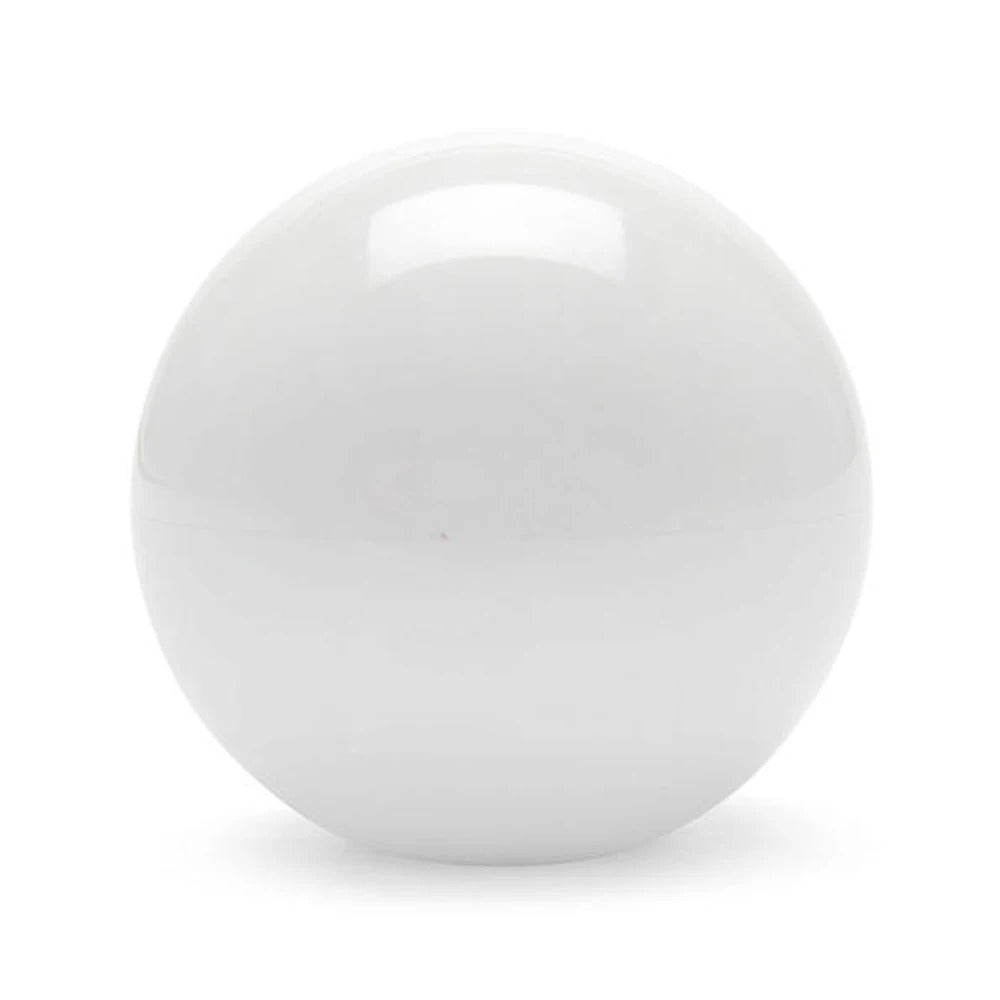

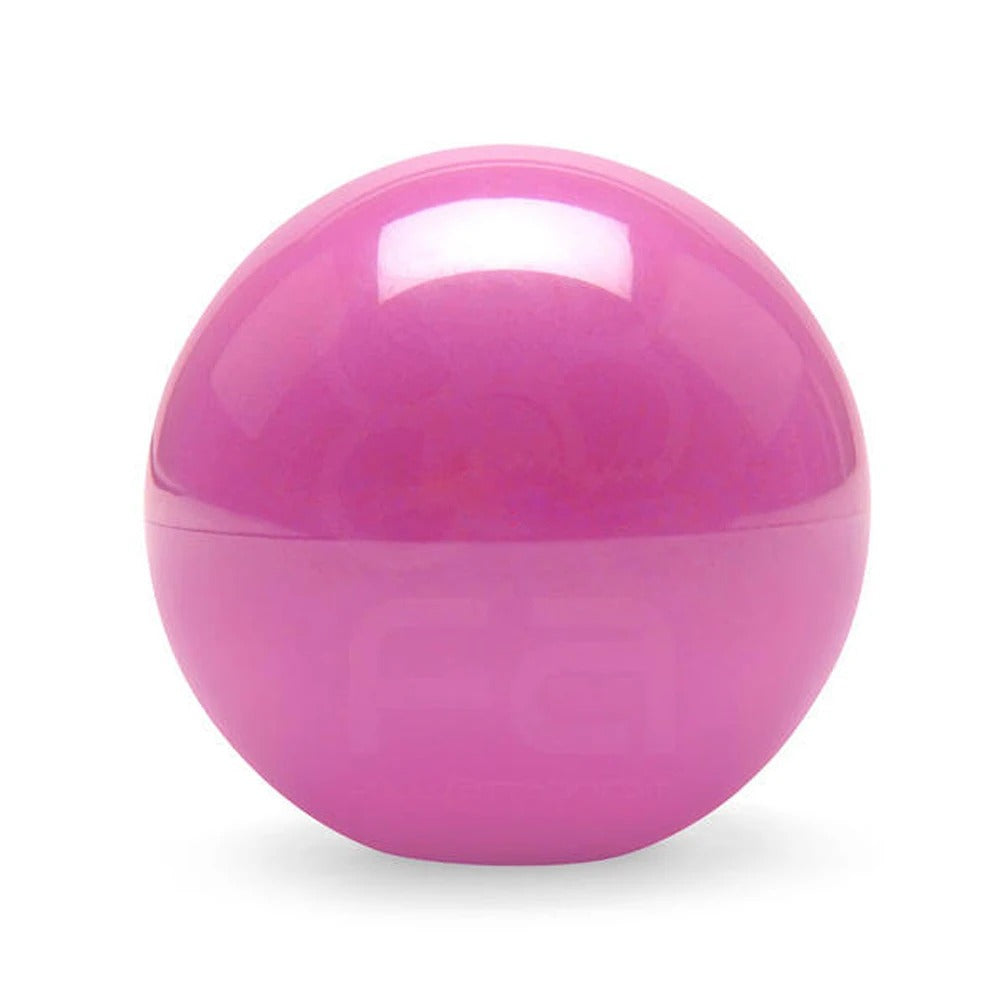

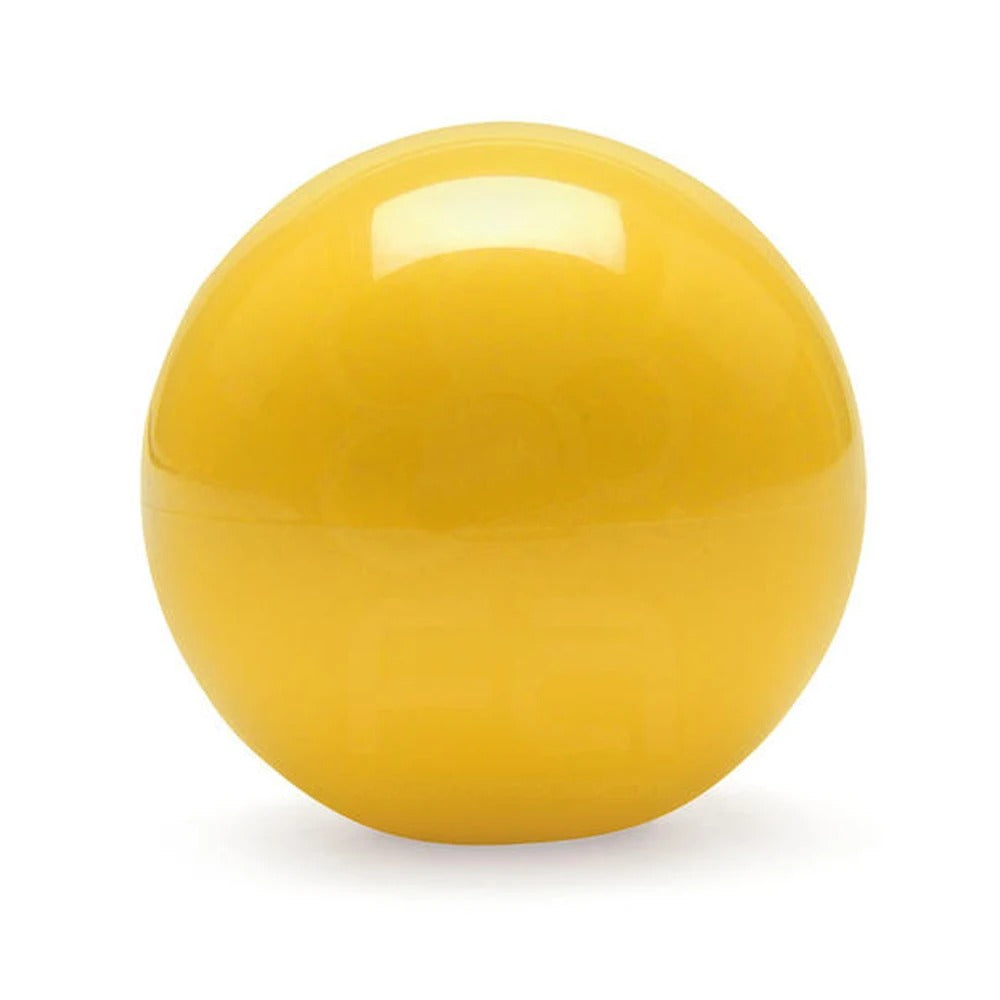

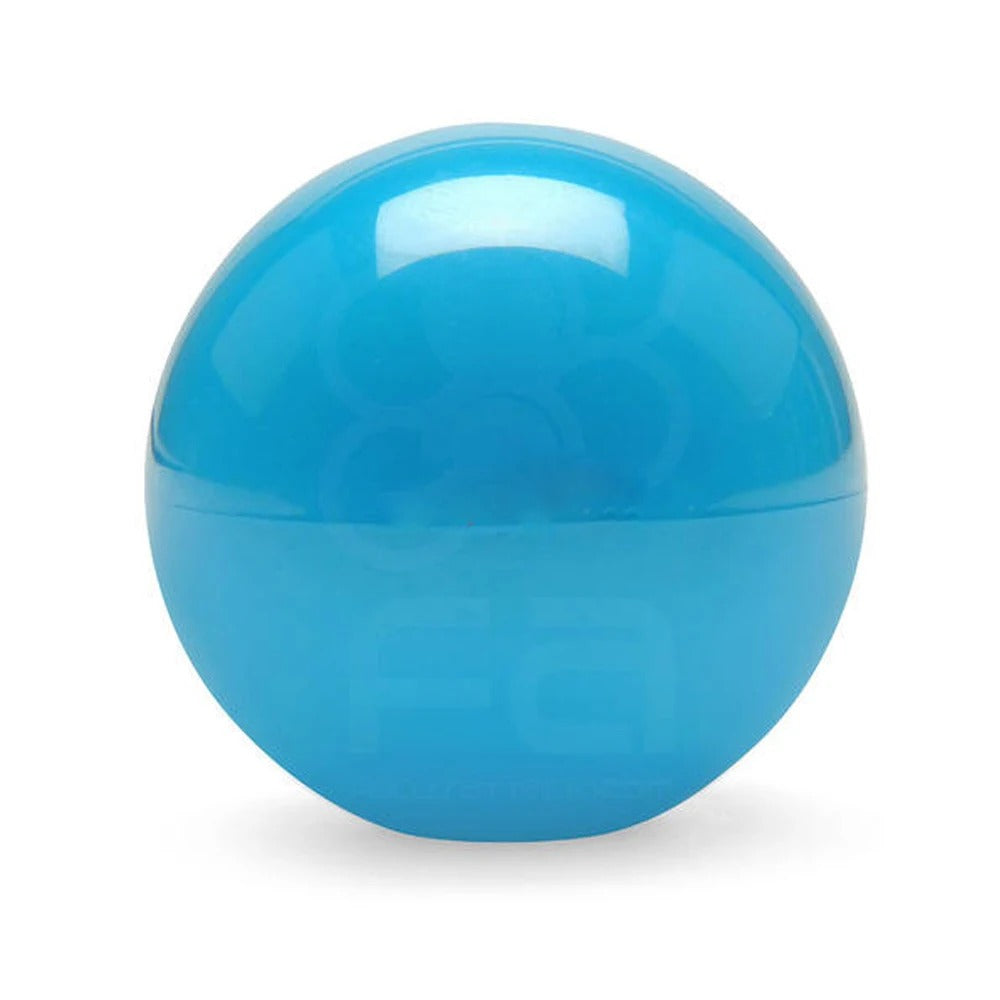

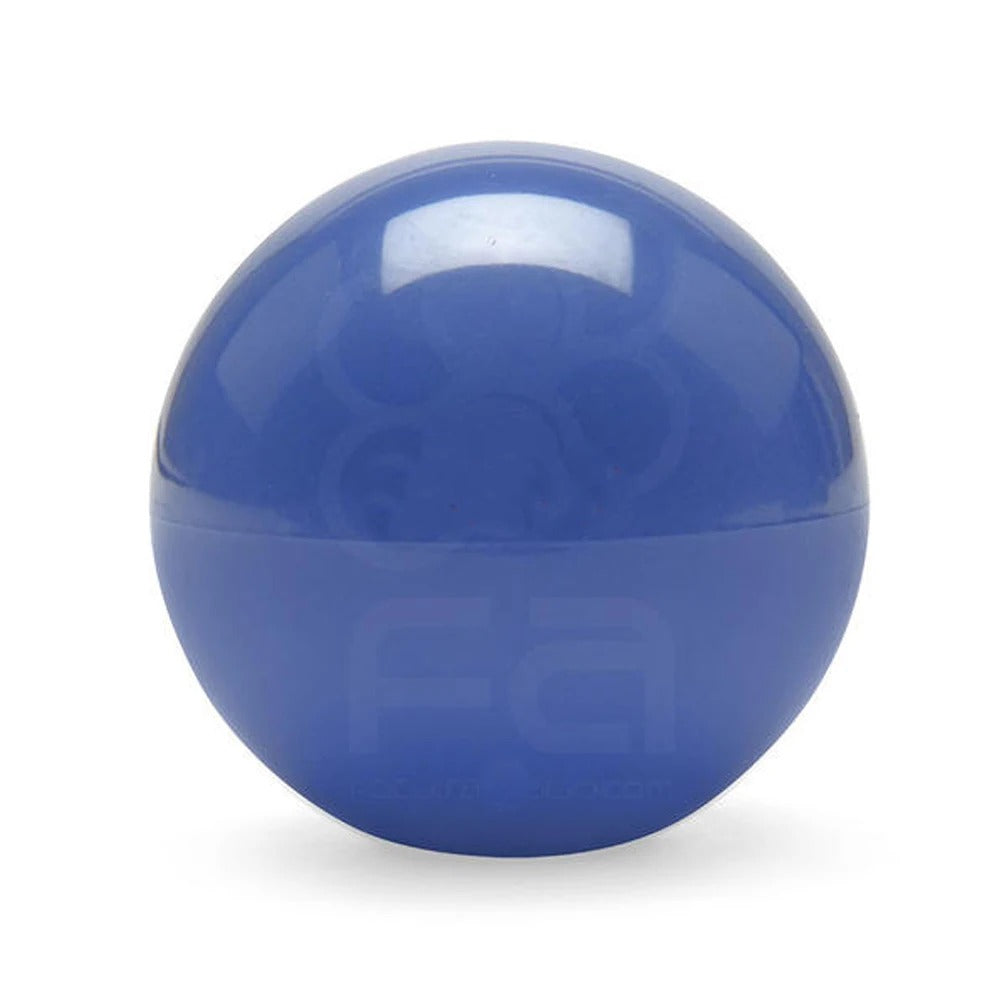

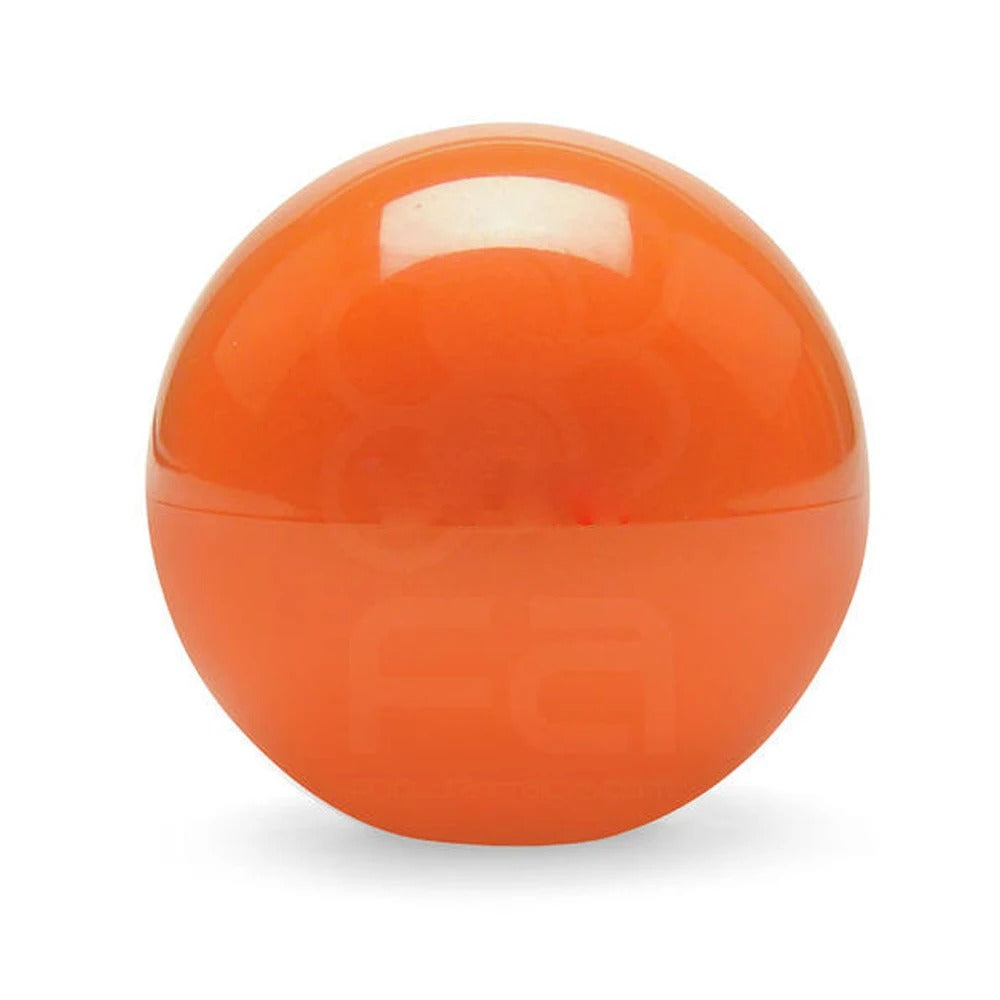

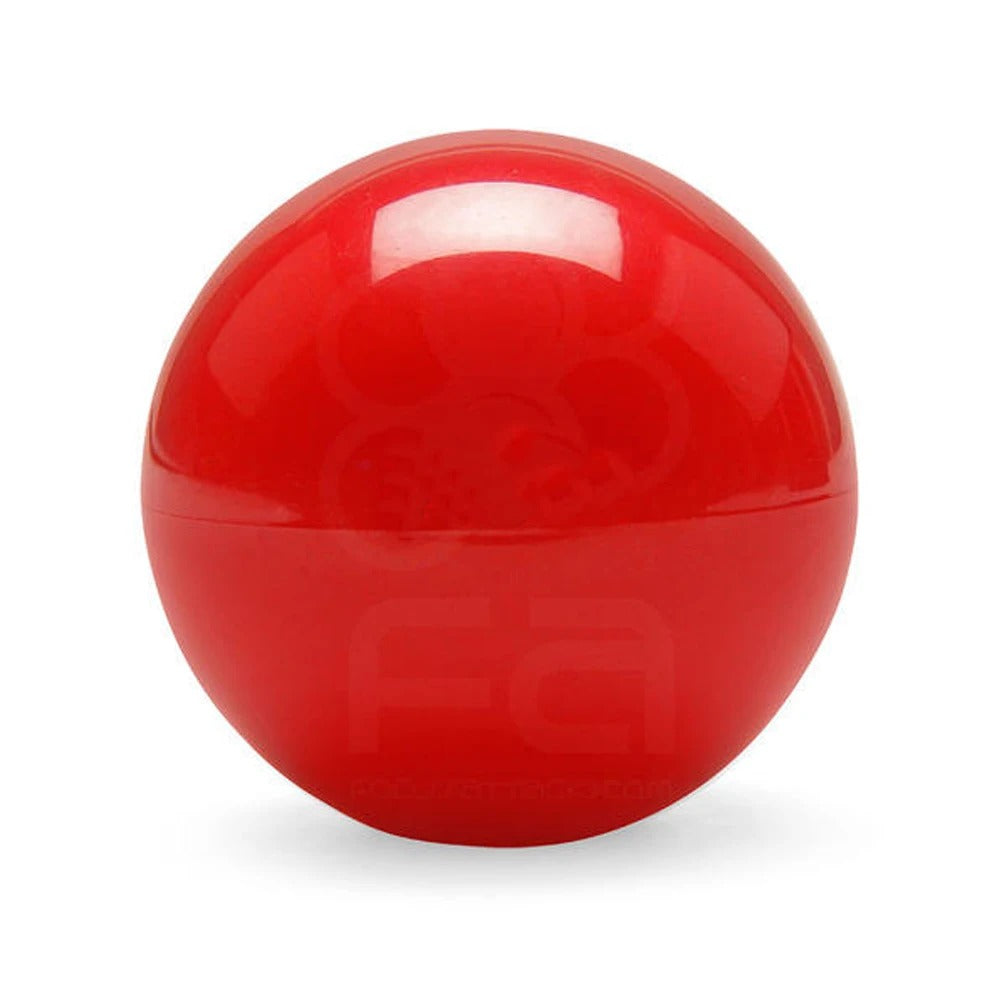

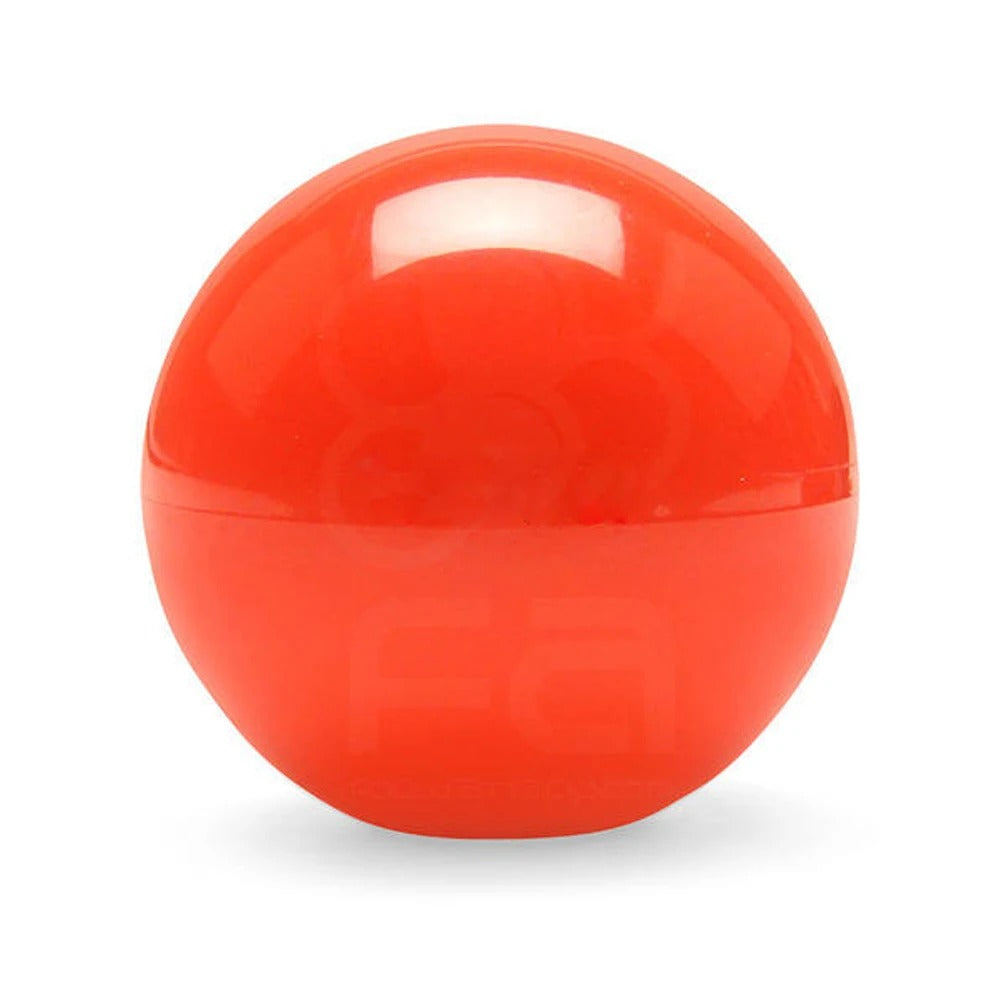

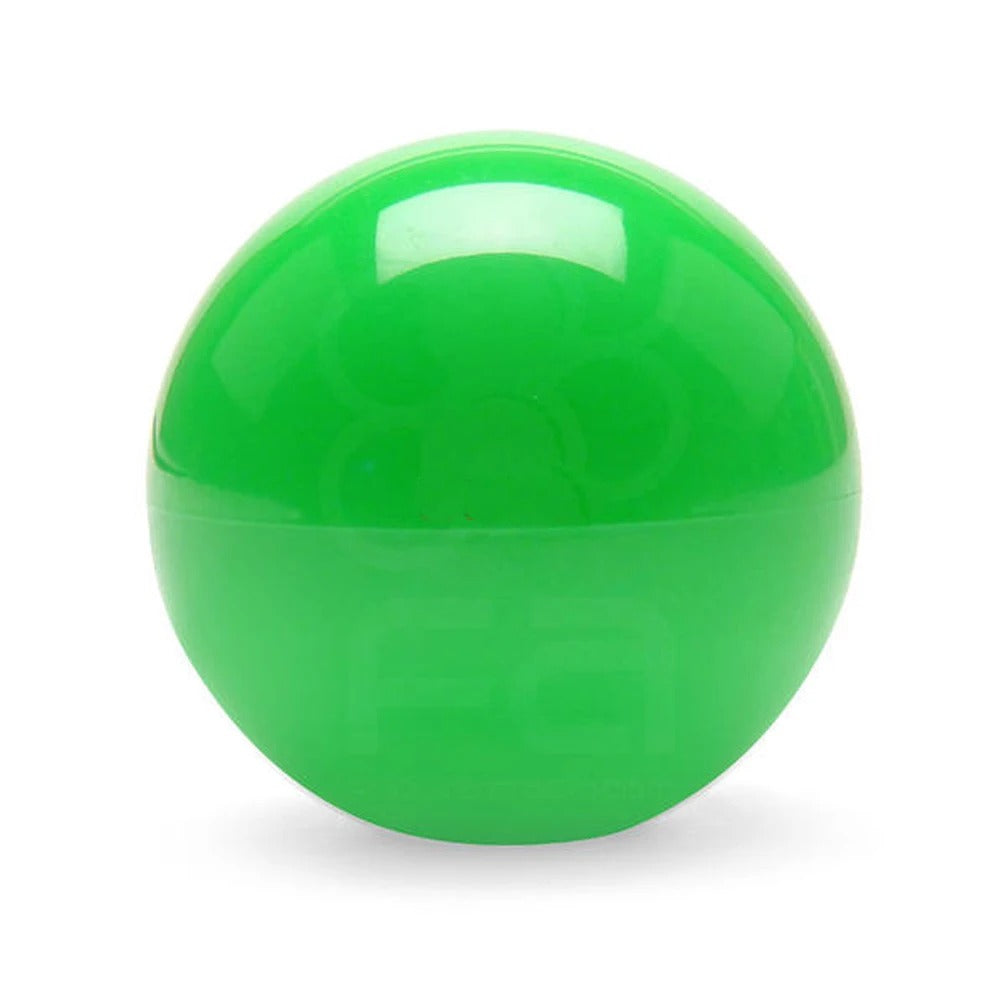

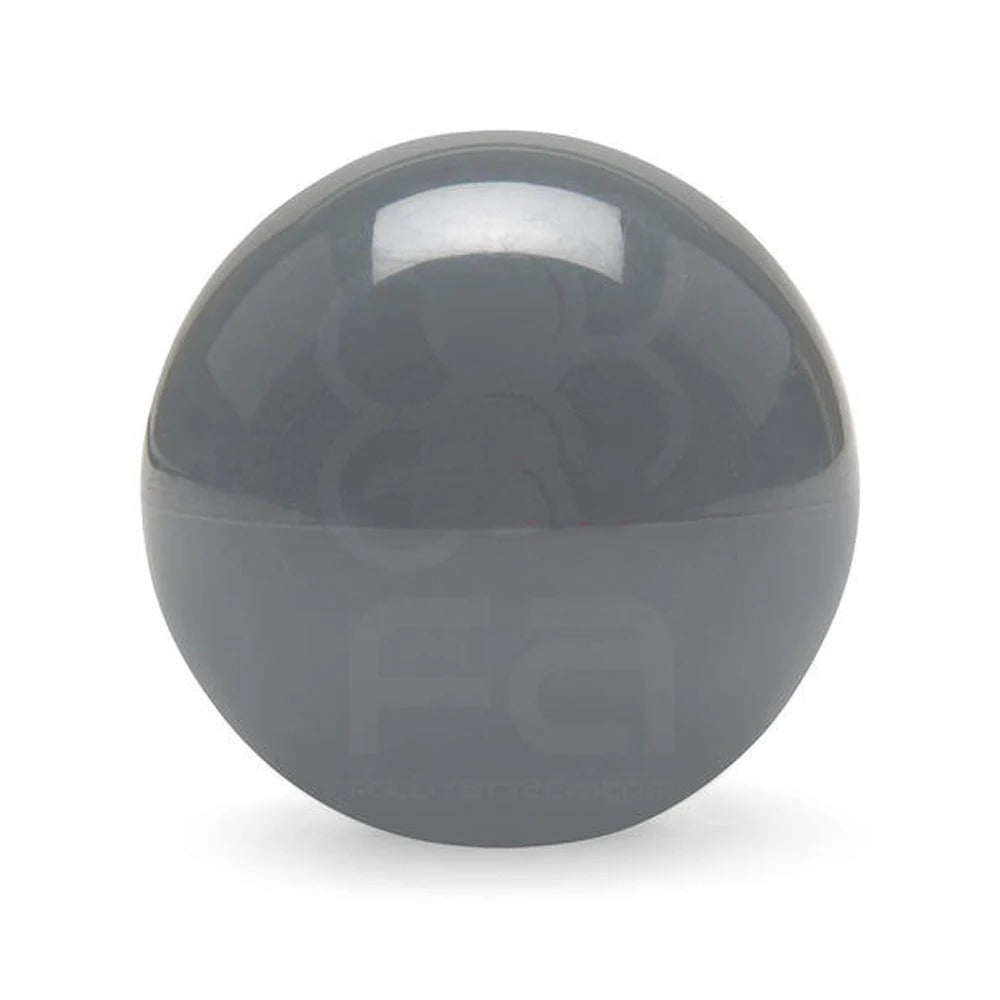

    Switchable Ball Top - Change the color any time easily!

    Can be changed to 4 ways or 8 ways operation

    Package includes dust cover and connection cable

    Solid spring and excellent 'Return to Center'

    Agile and precise

    Firm construction and durable

Ideal to replace arcade / home console joystick for fighting style games and any joystick heavy games

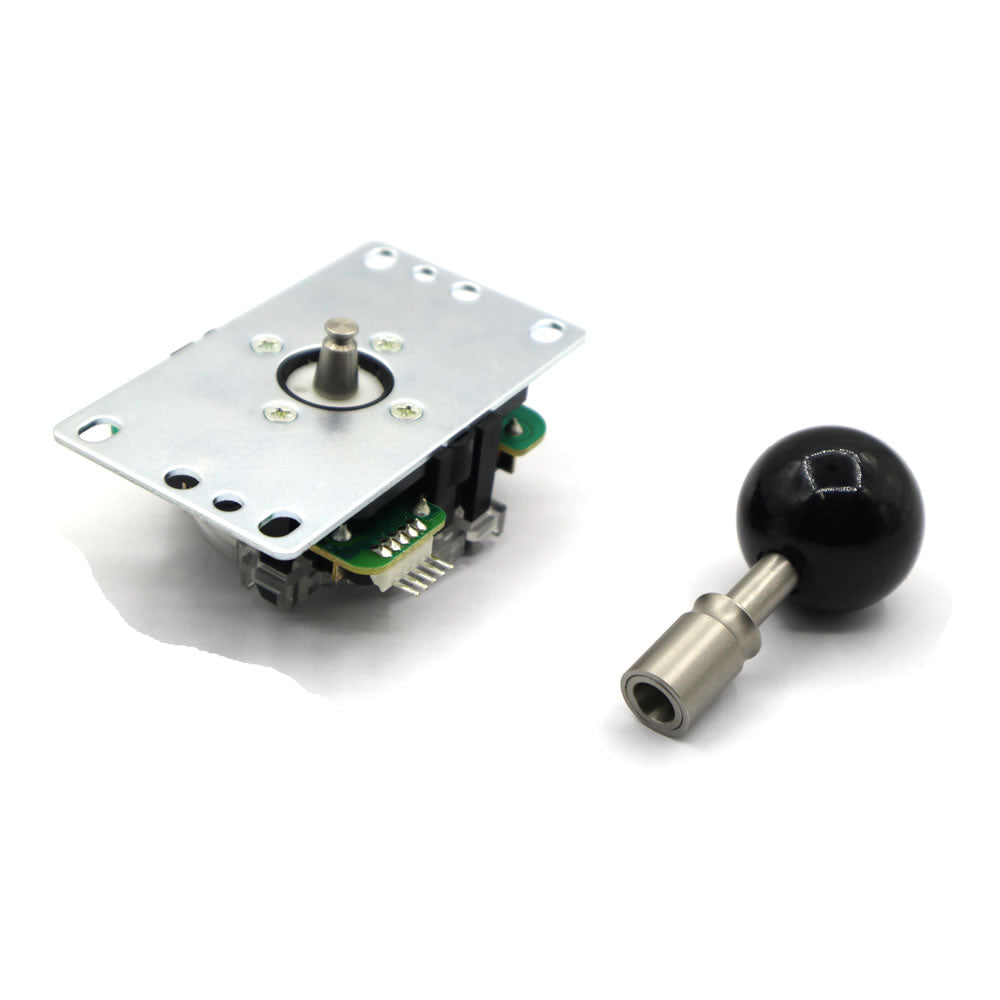

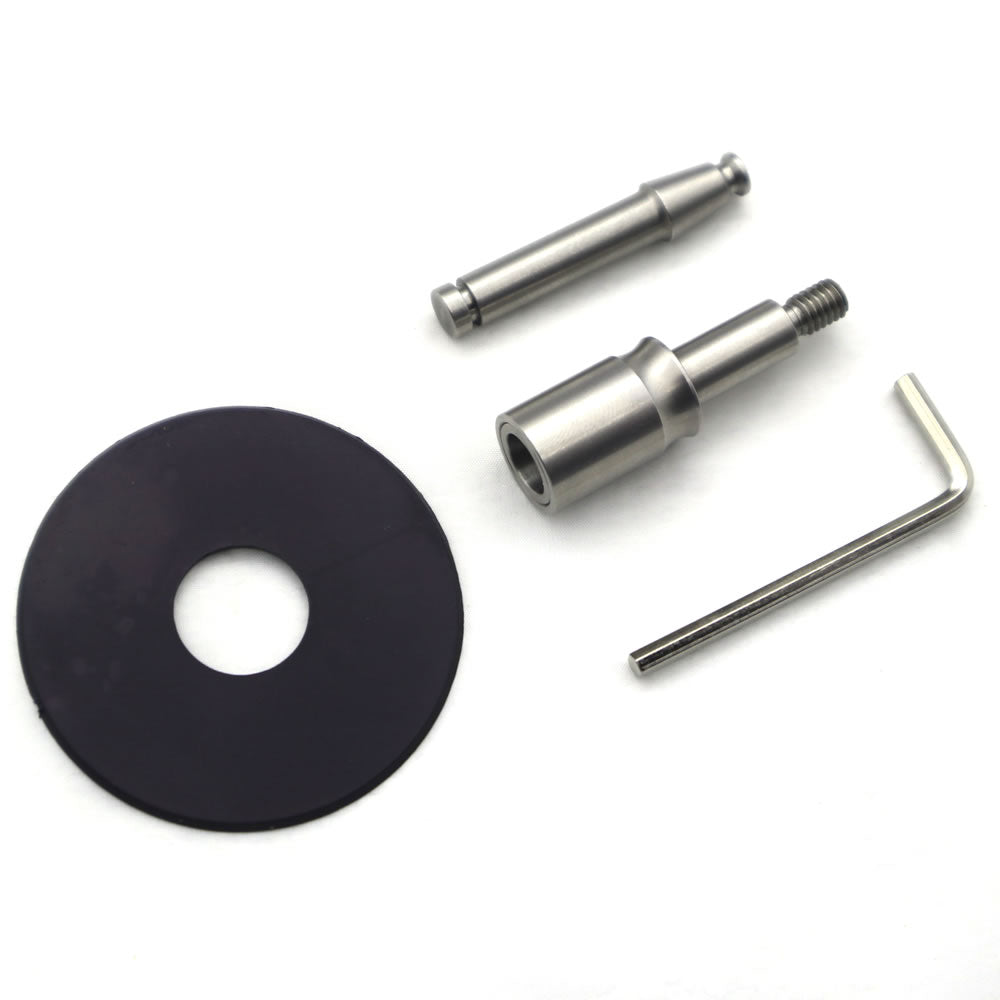

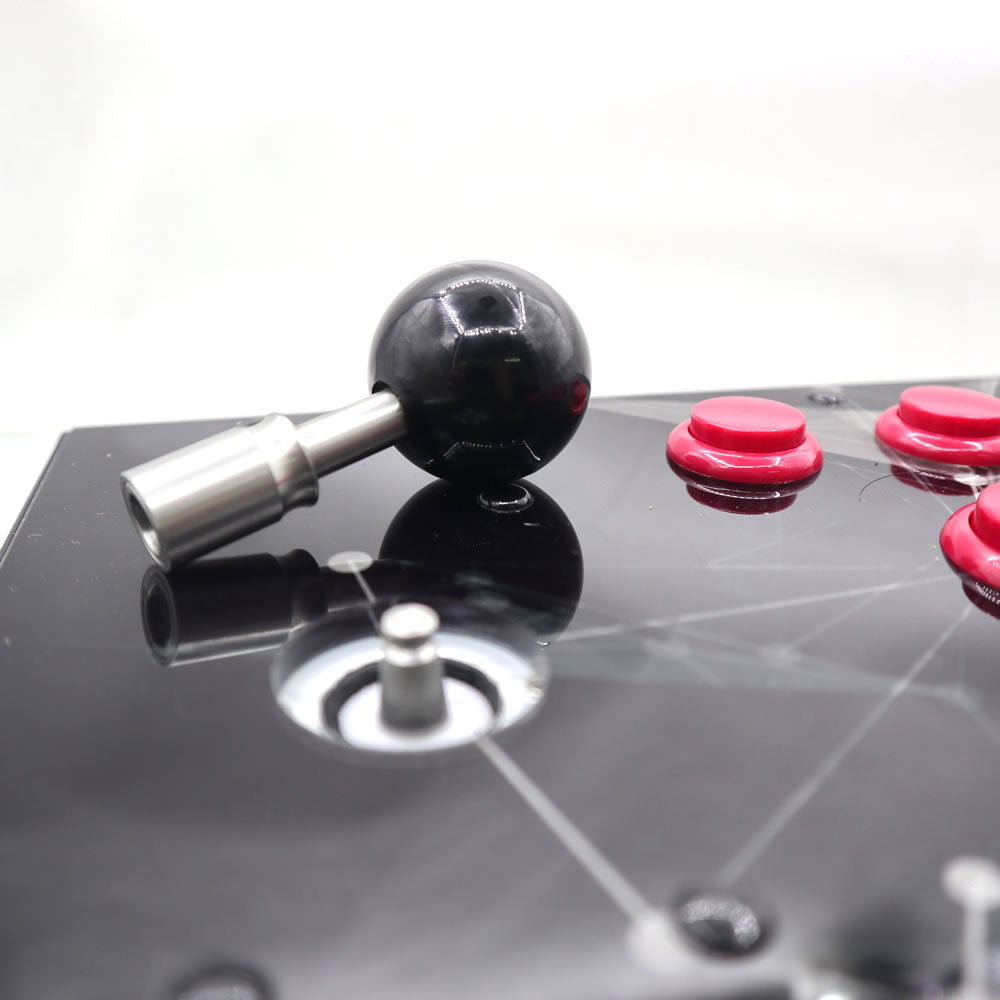

RAC-J300S Detachable Arcade Joystick Shaft features two-piece shaft design. It employs a quick coupling mechanism which make it super easy to attach and detach joystick shaft.

The top part of the shaft is equipped with a spring-loaded housing. To attach, pull up the housing with your thumb and forefingers, align it with the bottom piece, then release the housing. To detach, simply pull up the spring-loaded housing and pull off.

By replacing the shaft of the existing Joystick with RAC-J300S Detachable Arcade Joystick Shaft, players will be able to enjoy the convenience of detaching the protruding joystick shaft for easier transportation and storage.

Compatible: Sanwa JLF-TP-8YT and compatible arcade joysticks

Steps

  1. Remove the retaining ring on the SAWAN JLF-TP-8YT Joystick shaft.
  2. Remove the SANWAN joystick shaft.
  3. Insert the RAC-J300S Detachable Arcade Joystick Shaft into the joystick body.
  4. Insert the retaining ring into the groove of the Joystick shaft.
  5. Detach the top piece of the joystick by pulling up the housing with your thumb and forefingers.
  6. Install the balltop to the joystick using the hex key.
  7. Pull up the housing again and rest the top piece on the bottom piece, then release the housing.

Check the tutorial video on https://youtu.be/0jzPj7fSffU

About Shipping:

The item will be sent from China ShenZhen Warehouse.

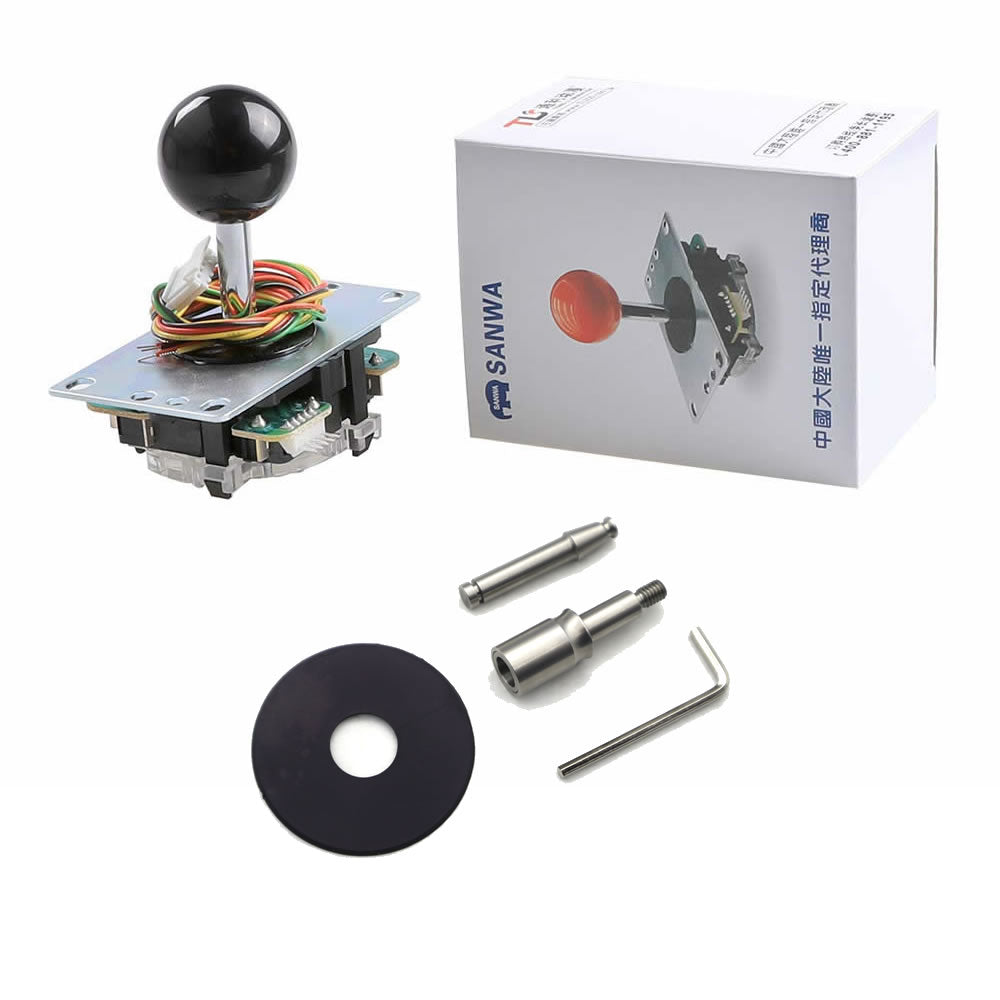

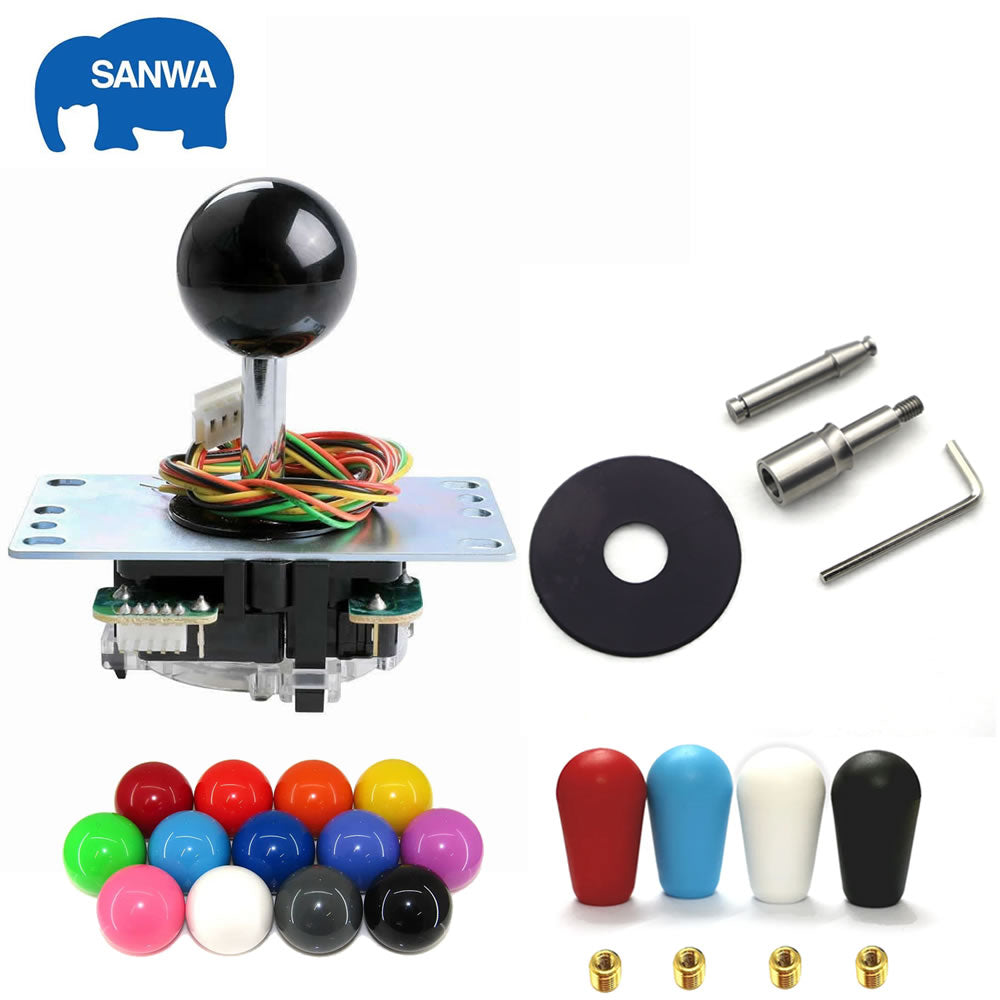

Package Includes:

1 x Original Sanwa JLF-TP-8YT Arcade Joystick 4 & 8 Way Adjustable Multi Colored

1 x RetroArcadeCrafts RAC-J300S Detachable Arcade Joystick Shaft Quick Release DIY

1 x Hex Key

1 x Solid black dust cover
